Scientech TechBooks are compact and user friendly learning platforms to provide a modern, portable,
comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia
learning material which covers basic theory, step by step procedure to conduct the experiment and other
useful information.

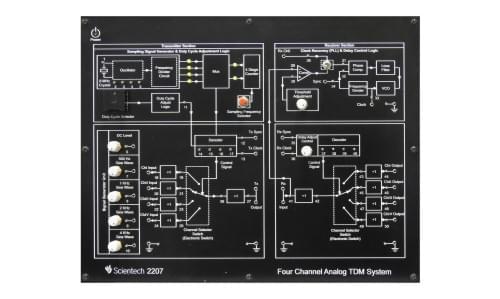

Four Channel Analog TDM System Scientech TechBook 2207 is a communication system where the message
signal is modulated using Pulse Amplitude Modulation and multiple access is provided using Time Division
Multiplexing. The message information is encoded in the amplitude of a series of signal pulses and
transmitted using Time Division Multiplexing (i.e. in different time slots).

The TechBook demonstrates following modes of operation between transmitter and receiver
Mode 1: 3 signals communication (Clock /Sync/Modulated Signals)
Mode 2: 2 signals communication (Sync/Modulated signals); Clock is recovered at receiver.
Mode 3: 1 signal communication (Modulated signal); Clock and Sync are recovered at receiver
