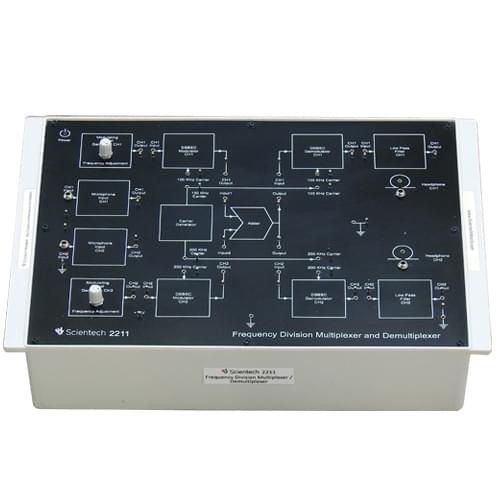

Frequency Division Multiplexer & Demultiplexer

Frequency Division Multiplexer/Demultiplexer Scientech 2211 demonstrates FDM technique. It basically fulfills the need for communication of two different inputs through a single channel by Frequency Division Multiplexing method. Scientech 2211 has the provision for onboard modulating signals as well as voice input. For reducing the complexity the same carriers are used for demodulation also. In practical FDM communication systems, carrier recovery and demodulation techniques may differ from those used in this trainer. However, the fundamental concept of Frequency Division Multiplexing remains the same. DSB-SC modulation technique is used for modulation and demodulation.

The trainer serves as a comprehensive Frequency Division Multiplexing (FDM) training platform, enabling students to study the principles of frequency multiplexing and demultiplexing techniques used in analog communication systems. It allows learners to understand the process of combining multiple baseband signals for simultaneous transmission over a common communication channel and to observe the resulting multiplexed FDM signal. The setup also enables the analysis of FDM waveforms and demonstrates the separation and recovery of individual signals at the receiver through the demultiplexing process.

Features

• Self contained and easy to operate
  • Two variable modulating (sinusoidal) input channels with provision of voice inputs
  • Two DSBSC modulators for frequency band translation of two test signals
  • Two Carrier Generators
  • Two sets of audio input amplifier
  • One adder/transmission amplifier
  • Two Demodulators
  • Two low pass filters for smooth output
  • 2 Sets of audio O/P amplifier

Why Choose Scientech 2211 Frequency Division Multiplexer & Demultiplexer?

Scientech 2211 is an effective educational trainer designed to provide a comprehensive understanding of the principles and applications of Frequency Division Multiplexing (FDM) in analog communication systems. Developed for engineering students and communication laboratories, the trainer demonstrates how multiple baseband signals can be transmitted simultaneously over a single communication channel using Frequency Division Multiplexing (FDM) and accurately recovered at the receiving end through the demultiplexing process.

The system features onboard modulating signal sources, voice input facilities, DSB-SC modulators and demodulators, and dedicated carrier generators, enabling learners to gain hands-on experience with practical multiplexing techniques. Students can study the complete FDM process, including signal multiplexing, transmission, demultiplexing, and recovery, while observing multiplexed FDM waveforms to understand frequency band allocation, channel sharing, and signal separation.

With its self-contained design, easy operation, and comprehensive experimental capabilities, Scientech 2211 serves as an ideal solution for communication engineering laboratories, helping students strengthen both theoretical knowledge and practical skills in analog communication systems.

FAQs

What is Frequency Division Multiplexing?

Frequency Division Multiplexing (FDM) is a communication technique in which multiple signals are transmitted simultaneously over a single channel by assigning each signal a different frequency band. This improves channel utilization and communication efficiency.

How does a Frequency Multiplexer work?

A frequency multiplexer combines two or more input signals into a single composite signal by modulating them onto different carrier frequencies. These signals can then be transmitted through a common communication channel without interfering with each other.

What is the purpose of a demultiplexer in an FDM system?

A demultiplexer separates the received composite signal into its original individual signals. It uses filtering and demodulation techniques to recover the information carried by each frequency channel.

What experiments can be performed using Scientech 2211?

Scientech 2211 enables students to study Frequency Division Multiplexing, DSB-SC modulation and demodulation, signal transmission through a common channel, carrier generation, and analysis of Frequency Division Multiplexing waveforms.

Who can use the Scientech 2211 Frequency Division Multiplexer & Demultiplexer trainer?

The trainer is ideal for engineering students, communication laboratories, technical institutes, and training centers that require practical learning of analog communication systems and multiplexing techniques.
