Frequency Modulation & Demodulation

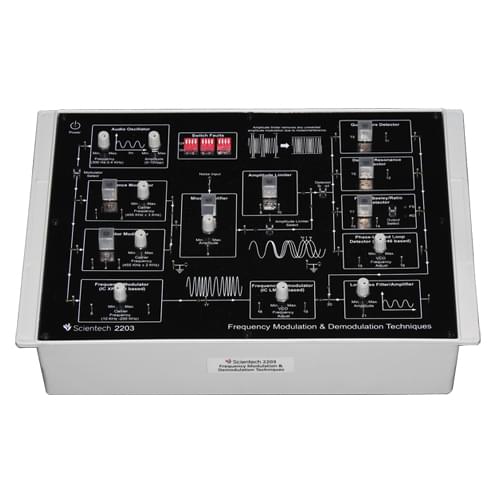

Scientech 2203 Frequency Modulation and Demodulation Techniques is a comprehensive learning solution specifically designed to study basic operation as well as to provide conceptual and step by step understanding of frequency modulation and demodulation techniques through observation of waveforms at various test points.

Block wise modular organization of circuit function with supporting technical information makes it easy to understand the process of FM generation and detection. The onboard frequency modulation and demodulation circuits help students understand and visualize the processes of signal generation, frequency modulation, transmission, demodulation, and signal recovery. The exercises are conceived to provide a practical approach to the subjects enable a deep analysis of the subjects and will guide the students to understand each function involved in FM modulation and demodulation.

Features

• Easy to operate & understand
• Functional blocks with self explanatory waveforms and technical details indicated on board
• On board Audio Oscillator, Frequency modulators/demodulators, Mixer/Amplifier, Amplitude limiter & Filter circuits
• Effect of noise on the detection of FM signal can be investigated
• LED indication for signal flow and selection
• More than 35 nos. Test points for waveform observation and analysis
• 12 Switched faults for troubleshooting at different functional blocks
  Online Product Tutorial

Why Choose Scientech 2203 Frequency Modulation & Demodulation?

Scientech 2203 is a comprehensive educational trainer designed to provide a practical understanding of frequency modulation (FM) and demodulation techniques used in analog communication systems. The trainer combines theoretical concepts with hands-on experimentation, enabling students to study FM signal generation, modulation, transmission, demodulation, and analysis through real-time waveform observation. Its block-wise modular architecture and clearly labeled functional sections simplify the understanding and implementation of communication system concepts in laboratory environments.

Key Benefits

• Designed for in-depth study of frequency modulation and demodulation techniques.
• Features dedicated frequency modulator and demodulator circuits for practical experimentation.
• Provides more than 35 test points for waveform observation and signal analysis.
• Enables investigation of noise effects on FM signal detection and recovery.
• Includes onboard audio oscillator, mixer/amplifier, amplitude limiter, and filter circuits.
• Supports step-by-step learning through clearly identified functional blocks and technical information.
• Equipped with LED indicators for easy monitoring of signal flow and circuit operation.
• Includes switched faults for troubleshooting and fault-finding exercises.
• Ideal for engineering colleges, universities, technical institutes, and communication laboratories.
• Helps students develop a strong understanding of FM modulation and demodulation concepts and applications.

FAQs

What is Frequency Modulation and Demodulation?

Frequency Modulation (FM) is a process in which the frequency of a carrier signal is varied according to the amplitude of the input signal. Demodulation is the reverse process that extracts the original information signal from the FM waveform.

What is the purpose of the Scientech 2203 trainer?

Scientech 2203 is designed to help students understand the principles of frequency modulation and demodulation through practical experiments, waveform observation, and analysis of various communication circuit blocks.

What can students learn using the Frequency Modulation & Demodulation trainer?

Students can learn FM signal generation, signal detection, noise effects on communication systems, waveform analysis, troubleshooting techniques, and the operation of different modulation and demodulation circuits.

How does a Frequency Modulator work?

A frequency modulator generates an FM signal by varying the frequency of a carrier wave in proportion to the amplitude of the modulating signal while keeping the carrier amplitude constant.

Who can use the Scientech 2203 Frequency Modulation & Demodulation trainer?

The trainer is ideal for engineering students, communication laboratories, universities, technical institutes, and educators seeking hands-on experience with FM communication systems and signal processing concepts.
