DSB-SSB AM Transmitter

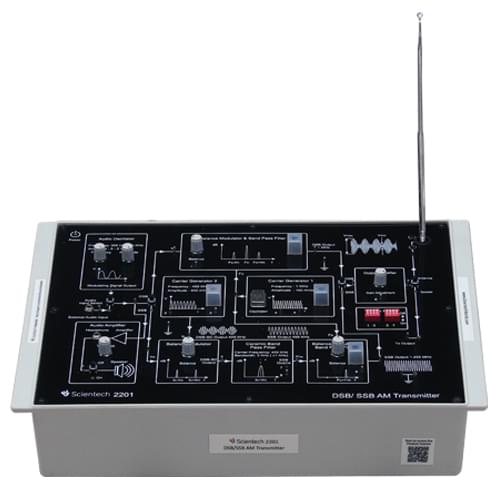

The Scientech 2201 DSB/SSB AM Transmitter Trainer is a comprehensive educational system designed to help students understand the fundamentals of amplitude modulation (AM), including Double Sideband (DSB) and Single Sideband (SSB) techniques.The trainer enables step-by-step learning through voltage measurement and waveform observation at multiple test points, providing a clear understanding of signal generation and transmission. Its block-wise modular design, supported by detailed technical information, simplifies the study of AM communication systems. The included practical exercises allow students to analyze each stage of modulation and transmission, ensuring a strong conceptual and hands-on understanding.

Features

• Easy to operate & understand
• Functional blocks with self explanatory waveforms and technical details indicated on board
• Oscillator controlled carrier frequency
• LED indication for signal flow and selection
• More than 25 nos. Test points for waveform observation and analysis
• 8 Switched faults for troubleshooting at different functional blocks
• Telescopic antenna for transmission of AM signal
• On board audio jacks provided for Microphone and Earphone connection
• On board Speaker provided for audio communication
• Online Product Tutorial

FAQs

1. What is a DSB-SSB AM transmitter?

A DSB-SSB AM transmitter is used to demonstrate amplitude modulation techniques, including DSB and SSB, allowing users to study signal generation, transmission, and waveform behavior.

2. What is the difference between a DSB transmitter and an SSB transmitter?

A DSB transmitter sends upper and lower sidebands and carrier, whereas in an SSB transmitter, only one sideband is sent, which is more efficient and reduces bandwidth compared to DSB transmission.

3. How does the Scientech 2201 DSB-SSB AM transmitter work?

The Scientech 2201 operates on the principle of producing a carrier signal with an oscillator and modulating it with an audio signal to generate DSB and SSB output signals. Users are able to view waveforms, measure voltages, and examine signal behavior on several test points.

4. What can you learn from a DSB-SSB AM transmitter system?

This system helps users understand DSB and SSB amplitude modulation, signal generation, waveform analysis, and how both DSB transmitter and SSB transmitter circuits operate by performing practical experiments.

5. What are the key features of the Scientech 2201 DSB-SSB transmitter?

It offers modular circuit design, multiple test points, built-in fault simulation, and real-time waveform observation, making it ideal for hands-on learning.
