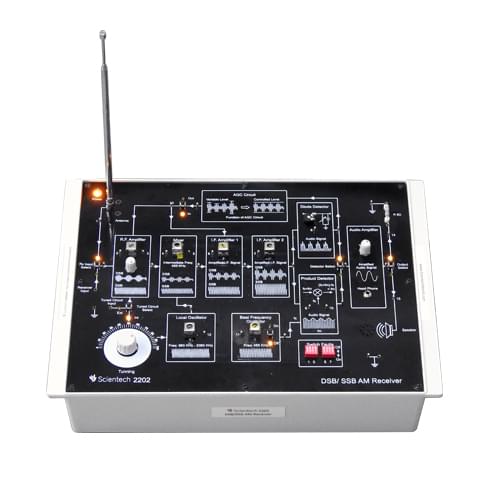

Scientech 2202 DSB/SSB AM Receiver is a comprehensive learning solution specifically designed to study basic operation as well as to provide conceptual and step by step understanding of a super heterodyne receiver and DSB/SSB Amplitude demodulation system through measurement of voltages and observation of waveforms at various test points. Block wise modular organization of circuit function with supporting technical information makes it easy to understand the process of AM reception and demodulation. The exercises conceived to provide a practical approach to the subjects enable a deep analysis of the subjects and will guide the students to understand each function.

Features

• Easy to operate & understand
• Functional blocks with self explanatory waveforms and technical details indicated on board
• On board Tuner provided for tuning the transmitting station
• LED indication for signal flow and selection
• More than 30 nos. Test points for waveform observation and analysis
• 8 Switched faults for troubleshooting at different functional blocks
• Telescopic antenna for reception of AM signal
• On board audio jack provided for Earphone connection
• On board Speaker provided for audio communication
