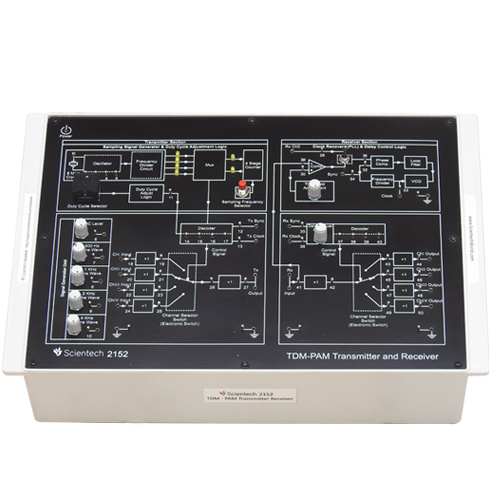

TDM-PAM Transmitter and Receiver Scientech 2152 is a communication system where the message signal is modulated using Pulse Amplitude Modulation and multiple access is provided using Time Division Multiplexing. This system is designed for practical understanding of pulse amplitude modulation and demodulation techniques used in modern communication systems and TDM modulation applications.
The trainer helps students understand Pulse Amplitude Modulation, signal sampling, transmission, and recovery methods used in digital communication systems. It is also useful for studying pulse amplitude modulation and demodulation concepts along with multiplexing and synchronization techniques in TDM modulation systems.
The message information is encoded in the amplitude of a series of signal pulses and transmitted using Time Division Multiplexing (i.e. in different time slots). The setup demonstrates how Pulse Amplitude Modulation signals are transmitted efficiently using TDM modulation techniques for multi-channel communication.
Modes of Operation
The Trainer demonstrates following modes of operation between transmitter and receiver:
Mode 1
3 signals communication (Clock /Sync/ Modulated Signals)
Mode 2
2 signals communication (Sync/Modulated signals); Clock is recovered at receiver.
Mode 3
1 signal communication (Modulated signal); Clock and Sync are recovered at receiver
Features
- Crystal controlled clock
- On-board synchronized analog Signal Generator (DC and Sine wave)
- Demonstrates sampling and reconstruction as per Nyquist criterion
- Four switch selectable sampling frequencies
- Sampling pulse duty-cycle selectable
- On-board Pulse Generator
- Four analog input channels to demonstrate TDM-PAM and TDM modulation
- Demonstrates Pulse Amplitude Modulation signal generation and recovery
- Useful for practical experiments on pulse amplitude modulation and demodulation
- Generation of clock at receiver by PLL
- Fourth order Butterworth Low Pass Filter
Why Choose Scientech 2152 TDM Pulse Amplitude Modulation/Demodulation?
Scientech 2152 is an advanced training system designed to help students and professionals understand Pulse Amplitude Modulation, pulse amplitude modulation and demodulation, and TDM modulation concepts through practical experimentation. The trainer provides hands-on learning for communication system principles, signal multiplexing, synchronization, sampling, and signal recovery techniques used in modern electronics and telecommunication laboratories.
- Designed for practical understanding of Pulse Amplitude Modulation and TDM modulation concepts.
- Helps students perform real-time experiments on pulse amplitude modulation and demodulation techniques.
- Supports multiple communication modes for better learning of transmitter and receiver operations.
- Built-in signal generator and pulse generator eliminate the need for additional external equipment.
- Demonstrates signal sampling and reconstruction based on Nyquist criterion for hands-on communication system training.
- Features PLL-based clock recovery for advanced TDM modulation experiments.
- Suitable for engineering colleges, universities, technical institutes, and communication laboratories.
- Four analog input channels allow clear demonstration of TDM-PAM communication systems.
- High-quality design with crystal controlled clock ensures stable and accurate performance.
- Compact and user-friendly trainer kit for effective learning of Pulse Amplitude Modulation systems.
FAQs
1. What is Pulse Amplitude Modulation (PAM)?
Pulse Amplitude Modulation (PAM) is a communication technique in which the amplitude of pulse signals varies according to the message signal. Pulse Amplitude Modulation is widely used in digital communication systems and TDM modulation applications for efficient signal transmission.
2. What is the purpose of the Scientech 2152 TDM-PAM Trainer?
Scientech 2152 is designed to help students and professionals understand Pulse Amplitude Modulation, pulse amplitude modulation and demodulation, signal sampling, synchronization, and TDM modulation techniques through practical experiments and real-time communication system demonstrations.
3. How does TDM modulation work in Scientech 2152?
In TDM modulation, multiple signals are transmitted over a single communication channel by assigning different time slots to each signal. The Scientech 2152 trainer demonstrates how Pulse Amplitude Modulation signals are transmitted and recovered using advanced TDM modulation techniques.
4. Who can use the Scientech 2152 TDM Pulse Amplitude Modulation/Demodulation Trainer?
The Scientech 2152 trainer is suitable for engineering colleges, universities, technical institutes, electronics laboratories, and communication system training centers for learning Pulse Amplitude Modulation and pulse amplitude modulation and demodulation concepts.
5. What experiments can be performed using the Scientech 2152 trainer kit?
The trainer allows practical experiments on Pulse Amplitude Modulation signal generation, pulse amplitude modulation and demodulation, signal sampling, synchronization, PLL-based clock recovery, and TDM modulation communication systems
