Scientech TechBooks are compact and user friendly learning platforms to provide a modern, portable,
comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia
learning material which covers basic theory, step by step procedure to conduct the experiment and other useful information.

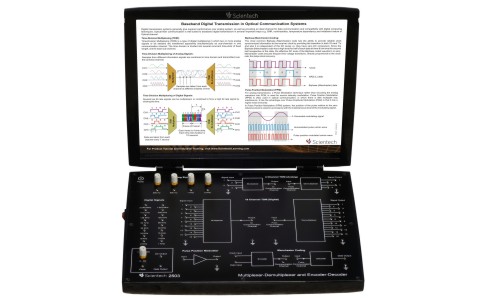

Multiplexer-Demultiplexer and Encoder-Decoder TechBook Scientech 2503 provides all necessary inputs and
connections for students to study Analog Time Division Multiplexing / Demultiplexing, Digital Time Division
Multiplexing/Demultiplexing of signals, Pulse Position Modulation and Manchester Encoding / Decoding
techniques. 2503 can be used independently or can be used to establish fibre optic link by using Fiber Optic
TechBook Scientech 2501and 2502.

Features

• Functional blocks indicated on board mimic
• Crystal Controlled Clock
• On board Sine wave and Digital Signal Generator
• 4-channel Time Division Multiplexing/Demultiplexing (Analog)
• 16-channel Time Division Multiplexing/ Demultiplexing (Digital)
• Manchester Coding and Decoding
• Pulse Position Modulation
• Can be used with Fiber Optic & various other Communication Links
