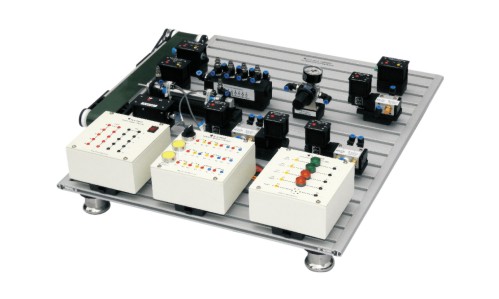

Scientech 2400ATS PLC Controlled Electro Pneumatic Training System with sensors and pneumatic components
is a setup designed to provide hands-on training in industrial automation using Programmable Logic Controllers
(PLCs), sensors, and pneumatic systems. This system allows students or trainees to gain practical experience in
designing, programming, and troubleshooting PLC-based automation systems.

Features

• PLC with 8 digital inputs and 6 digital outputs with USB port with programming and simulation software.
• PLC operated electro pneumatic system.
• All components have spring-latch mechanism to hold on to the training platform.
• The pneumatic components are fitted with D4 one-push fitting and all the component’s position can be
adjusted and secured by means of latch mechanism.
• The electrical connection has compatible banana connector socket.
• Electrical component switch module contain 2 momentary pushbutton and latch switch with NO and NC
contact, sensor module contain cylindrical inductive sensor unshielded, cylindrical diffuse reflective sensor and
cylindrical capacitive sensor and power distribution module (24VDC).
• Anodized aluminum profile base structure.
• Pneumatic component double acting cylinder are provided with reed switch, double acting 5/2 solenoid valve,
single acting 5/2 solenoid valve, single acting 3/2 solenoid valve with spring-latch mechanism to hold on to the
training board.
• Flat belt conveyor with dc geared motor and speed controller.
• Industrial look & feel.
• Function and identification of Pneumatic components.
• Practice troubleshooting skills.
• Pneumatic safety awareness.
• Robust construction.
• Experiment configurable through 2mm patch cord.
