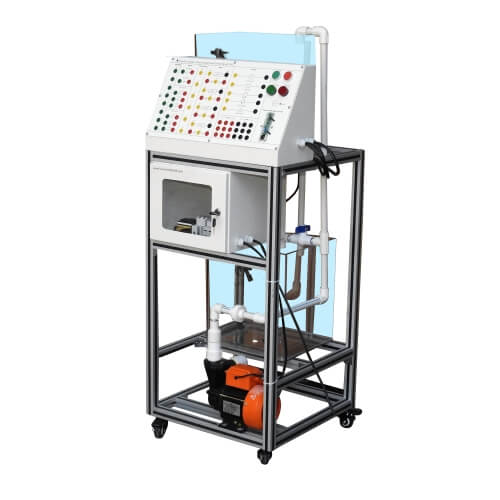

Water Level Control Rig with PLC

Scientech2421R

Share On:







Scientech 2421R Water Level Control Rig with PLC enables students and practicing engineers to gain invaluable practical experience on the principles and application of programmable logic controllers. The objective is to connect and program programmable logic controller to monitor and control the level of water in a tank system. Scientech 2421R consists of a Delta PLC, float switch, solenoid valve, polycarbonate sump tank, measuring tank, water pump, start, stop pushbutton, and its indicator.

Features

  • Delta make PLC with 8 digital inputs and 6 digital outputs.
  • Polycarbonate transparent tank for water storage and measurement.
  • Three float level switches to sense the tank low, middle and high level in both sump tank and measuring tank.
  • Start and stop button. Indicators for process start and process stop.
  • Several sample ladder programs.
  • Extremely easy and student friendly software to develop different programs.
  • Experiments configurable through patch board.
  • Profile based structure of rig.
  • Solenoid valve mounted in measuring tank outlet for control through PLC.
  • Easy downloading of programs.
  • Robust construction.
  • MCB and RCCB provided with AC supply for safety.
  • Enhanced electrical safety considerations.
  • Caster wheel (with locking mechanism) at the legs of rig for easy movement.
