PLC Controlled Multi Process Workbench

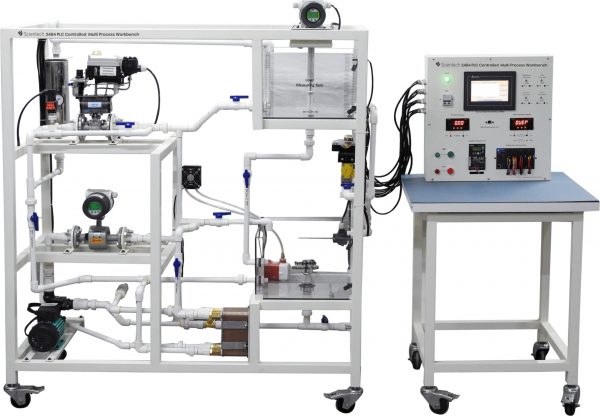

The Scientech 2484 PLC Controlled Multi-Process Workbench is a comprehensive, self-contained, floor-standing training system that accurately replicates industrial process control systems used across various sectors such as chemical, oil, food, water, power, and other process-driven industries. Specifically designed for hands-on learning, this PLC workbench offers students and technicians a practical, real-world experience in programming, automation, and process control, utilizing industry-standard components and tools.

This fully integrated workbench provides users the ability to control multiple processes, including temperature, pressure, flow, and level, using both two-point (On/Off) and three-point (PID) controllers. The Scientech 2484 workbench is designed to expose users to a wide array of industrial components, including PLC controllers, HMIs, IIoT Gateways, pressure transmitters, level transmitters, flow transmitters, temperature transmitters, control valves, variable frequency drives (VFDs), heaters, pumps, float switches, and more. The integrated PLC control panel enables efficient monitoring, operation, and management of various industrial process parameters.

With its advanced IIoT capabilities, users gain hands-on experience in real-time data acquisition, remote monitoring, and process control through the IIoT Gateway. The system is tailored to help users understand the complexities of industrial automation, PLC control systems, and IIoT applications, enabling them to develop valuable, practical skills that are essential for real-world industrial environments.

Features

• Remote monitoring and control of the entire system is available through a cloud-based SCADA platform, allowing access and control via PC or mobile devices from anywhere in the world.
• This PLC workbench is equipped with a PLC controller featuring 16 digital inputs, 12 digital outputs, 4 analog inputs, and 4 analog outputs for comprehensive process control and monitoring. Communication facilities include USB, RS-485, and Ethernet, enabling seamless connectivity and integration with other devices and networks. It comes with industry-standard PLC programming software, making configuration and control easy and efficient. Ladder programming is used for intuitive and simple process control setup.
• User-friendly 7” HMI touch screen for real-time process visualization and interaction. It also includes HMI programming software and programming cables for easy design of user interfaces and parameter configurations through the integrated PLC control panel.
• Scientech 2484 includes essential process measurement devices such as a Pressure Transmitter, Level Transmitter, Flow Transmitter, Temperature Transmitter and Temperature Sensor for accurate monitoring of key process variables.
• Real-world process control components include Control Valve, Variable Frequency Drive (VFD), Heater, Pump, Float Switch, Start/Stop Switches, and Indicators, enabling full control over industrial processes and real-world applications.
• Supports both continuous controllers (P, I, PI, PID) for dynamic process regulation and discontinuous controllers (On/Off control) for simpler applications within a modern PLC control system.
• Water pumps can be controlled via VFD to adjust speed, optimizing energy efficiency and improving pump operation.
• The workbench includes software for PC-based ladder and HMI programming, enabling users to easily develop and configure programs for process control using the PLC controller.
• The workbench allows users to apply theoretical concepts in a practical setting, helping bridge the gap between classroom learning and real-world industrial practices.
• The workbench includes separate tanks for temperature, level, and pressure control, enabling hands-on experimentation under various conditions.
• Capable of both open-loop (manual) and closed-loop (feedback) PLC control system configurations, enabling practical demonstrations of feedback control and set-point regulation.
• Experiments can be easily configurable through the patch board, allowing flexible and customized process setups for training purposes.
• Built with a heavy-duty M.S. Epoxy-coated frame, the PLC workbench is durable enough to withstand the demands of industrial training environments. It is also equipped with caster wheels (with a locking mechanism) for easy movement, making it adaptable to various training setups and spaces.
• The workbench is designed with enhanced electrical safety features, including an MCB for AC supply protection, leak-proof safety measures, and sturdy piping for safe operation. The enclosed PLC control panel ensures safe and reliable operation during training and experimentation.

Why Choose Scientech 2484 PLC Controlled Multi-Process Workbench?

The Scientech 2484 PLC Controlled Multi-Process Workbench is designed to provide comprehensive hands-on training in industrial automation and process control. Combining real industrial components with advanced learning capabilities, this PLC workbench helps students, engineers, and technicians develop practical skills that are directly applicable in modern industrial environments.

Key Benefits

• Industry-Relevant Training: Learn and practice on real-world industrial devices, including a PLC controller, HMI, VFD, transmitters, control valves, and IIoT gateway.
• Multi-Process Learning Platform: Perform experiments involving temperature, pressure, flow, and level control on a single integrated system.
• Advanced PLC Control System Experience: Gain practical knowledge of process automation, ladder programming, PID control, and industrial communication protocols.
• Integrated PLC Control Panel: Easily monitor, operate, and configure processes through a professionally designed control interface.
• IIoT and SCADA Ready: Develop skills in remote monitoring, cloud connectivity, real-time data acquisition, and Industry 4.0 technologies.
• Hands-On Industrial Automation: Bridge the gap between theoretical concepts and practical implementation through real process control applications.
• Flexible Experimentation: Supports open-loop and closed-loop control strategies, allowing users to understand a wide range of industrial control techniques.
• User-Friendly Learning Environment: Equipped with intuitive PLC and HMI programming software for simplified setup, operation, and troubleshooting.
• Robust and Safe Design: Built with a durable epoxy-coated frame, industrial-grade components, and enhanced electrical safety features for long-term use.
• Ideal for Training Institutes and Industries: Suitable for engineering colleges, technical training centers, vocational institutes, and industrial automation laboratories.

FAQs

1. What is the Scientech 2484 PLC Controlled Multi-Process Workbench used for?

The Scientech 2484 PLC Controlled Multi-Process Workbench is used for practical training in industrial automation and process control. It enables students, engineers, and technicians to perform real-time experiments involving temperature, pressure, flow, and level control using a PLC controller, HMI, VFD, transmitters, and IIoT technologies.

2. Which industrial processes can be controlled using the Scientech 2484 PLC Workbench?

The workbench supports multiple industrial processes, including temperature control, pressure control, flow control, and level control. Users can perform both open-loop and closed-loop control experiments using On/Off and PID controllers, making it ideal for learning industrial process automation.

3. Does the Scientech 2484 support IIoT and remote monitoring?

Yes. The Scientech 2484 is equipped with an IIoT Gateway and supports cloud-based SCADA for remote monitoring and control. Users can access real-time process data and operate the system through a PC or mobile device from virtually anywhere with internet connectivity.

4. What components are included in the Scientech 2484 PLC Controlled Multi-Process Workbench?

The workbench includes a PLC controller, 7-inch HMI touchscreen, IIoT Gateway, Variable Frequency Drive (VFD), control valve, water pump, heater, pressure transmitter, level transmitter, flow transmitter, temperature transmitter, temperature sensor, float switch, and integrated PLC control panel. These industrial-grade components provide a realistic automation training environment.

5. Who should use the Scientech 2484 PLC Controlled Multi-Process Workbench?

The Scientech 2484 is ideal for engineering colleges, polytechnic institutes, vocational training centers, industrial automation laboratories, research organizations, and manufacturing industries. It helps learners gain hands-on experience in PLC programming, industrial process control, HMI development, PID control, SCADA, and Industry 4.0 applications.
