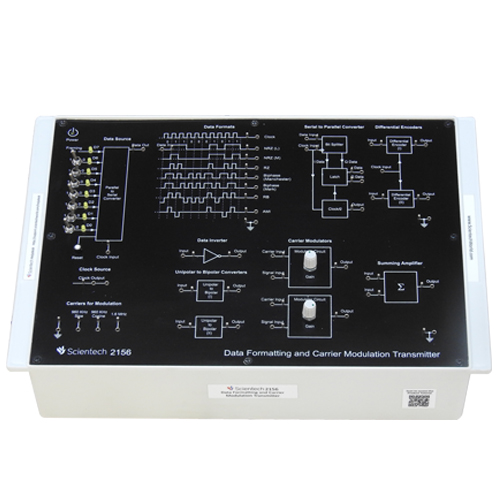

Data Formatting & Carrier Modulation Transmitter Scientech 2156 is complete digital communication Platform
which efficiently explains all communication processing steps involved in digital transmission. Various digital
modulation techniques viz. ASK, FSK, PSK, DPSK, QPSK etc. can be implemented using Scientech 2156.

Features

• On-board Carrier generation circuit (Sine waves synchronized to transmitter data).
• On-board in phase and quadrate phase carrierfor QPSK modulation.
• Different data conditioning formats NRZ (L), NRZ (M), RZ, Biphase (Manchester), Biphase (Mark),AMI, RB.
• FSK, PSK, DPSK ASK, QPSK, DQPSK Carrier modulation.
• On-board Unipolar to Bipolar conversion.
• On-board Data Inverter.
• On-board 8-bit Data source
• On-board Clock source
