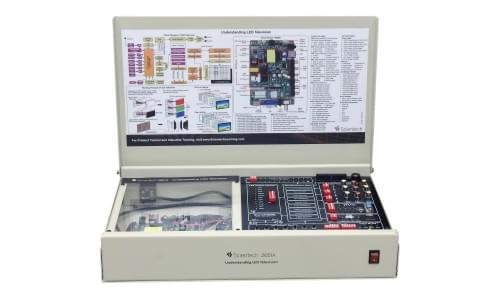

Scientech 2651A Understanding LED Television is a friendly training platform to learn the operation of LED
Television receiver. It is demonstrator cum training system specifically designed for the comprehensive practical study on LED TV engineering for the beginners with a basic knowledge of the various electronic building blocks and fundamentals of communication system.
This didactic product develops the sense of investigation within the student and familiarises him with
repair/design techniques. One of the main features of this training system is fault simulation to educate on actual fault finding, by simulating faults on this platform. The complete block diagram of LED TV system is printed on the mimic. Finally this equipment allows us to do experiments and to observe waveforms/signals/voltages of different sections, which are guided thoroughly by theory and product tutorials to gain in-depth knowledge of the system.

Features

· Superior quality 24-inch full HD LED Color Television/ PC Monitor
. Manual and Remote control operation
· PAL/ NTSC video formats
· Composite video input/ VGA input
· Complete block diagram of a LED TV system on-board
. Easy identification of different parts and components of the system at a glance
Easy measurement of voltages and observation of waveforms on test points
· Soldering free fault creation and troubleshooting
· Online Product Tutorial
