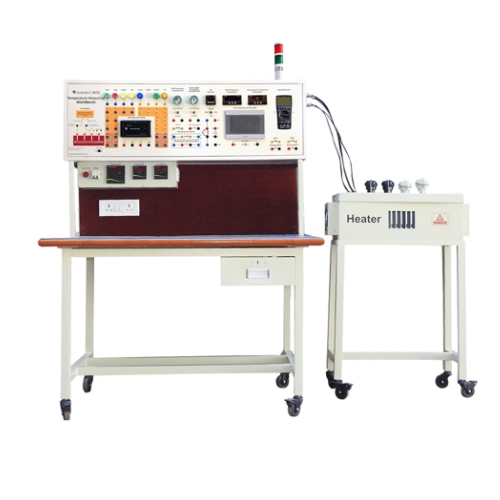

Temperature Measuring WorkBench

Scientech2472

Share On:



In this world driven by technology, instrumentation & control engineering drives industrial growth, whilst process control is a vital concept of it. The functionality and complexity of Process Control has increased. Scientech 2472 Temperature Measuring WorkStation consists of an instrument panel and working area. This system comprises of latest components, which reflect the latest technological innovations in this field. Temperature Measuring WorkStation allow user and industry professionals to understand the concepts and working of temperature measuring instruments and control.

Scientech 2472 Temperature Measuring WorkStation is a complete setup to control process through two point (On/Off) and three point (PID) controllers. Temperature can be controlled through an DAQ which has 8 digital inputs and 8 digital outputs and 8 analog inputs. Scientech 2472 also gives the exposure to Industrial components like Temperature Transmitter, Temperature Sensor, Thermocouple, RTD, PID controller, Radiation Pyrometer, and Heater etc. Users can learn how to install, operate, program and tune the instruments for controlling the processes. All electrical components are connected to the control panel to allow user to measure signals and connect devices in wide variety of control configuration including open loop (manual control) and close loop (PID control, ON/OFF control).

Features

  • 7? Human Machine Interface (HMI)
  • Types of Controller DAQ, HMI & Industrial PID Controller
  • Temperature Transmitter for RTD & Thermocouples
  • Industrial RTD & Thermocouple Sensor
  • Start, Stop, Heater, Fan button. Indicators for Audio, Visual, Heater and Fan
  • Interface with Ethernet based DAQ
  • Real-time DAQ interface with ADC, DAC & digital input/output
  • Supplied with Dashboard Software for supervisory control of the process with data acquisition
  • PC Based Data Logging
  • Temperature Measurement and control
  • Heavy duty WorkStation
  • Electrical control panel
  • SCR Power Controller for Heater
  • Automatic and Manual control
  • Process Control by On/Off Controller
  • Process Control by PID with auto tuning
  • Process loop tuning & stable process
  • User friendly, self explanatory system
  • Practice troubleshooting skills
  • Experiments configurable through patch board
  • Enhanced electrical safety considerations
  • Caster wheel (with locking mechanism) at the legs of WorkStation for easy movement
  • MCB provided with AC supply for safety purpose
  • Academic and vocational study for process control engineers and plant technicians
