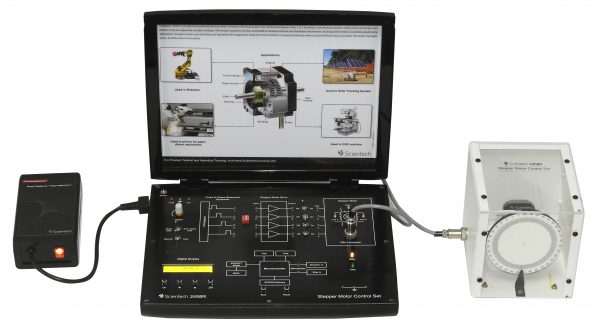

Study of Stepper Motor

Scientech 2458

Scientech Study of Stepper Motor explains students the operation and control of Stepper Motor effectively. It helps the student in understanding half and full step angle of Stepper Motor. The LED`s provides the visual indication of the coil excitation process. It has a provision for connecting the motor with an external controller. Stepper Motor are widely used for application such as Conveyor system, Robotics, Printing machine, Solar tracking system ,Elevator load etc.

Scientech 2458, Study of Stepper Motor is an ideal teaching aid to enhance education, training, skills & development amongs our young minds.

Features

Different modes of operation
Half and Full step angle
Visual indication of the coil excitation
External connector for programming with different controllers
Separate unit for Motor in a see through cabinet.
Easy to operate.

Scope of Learning

Study and use of Stepper Motor in Wobble Mode.
Study of Stepper Motor in Full Step, Single Phase, Free Running Mode.
Study of Stepper Motor in Full Step, Single Phase, Step Running Mode.
Study of Stepper Motor in Full Step, Two Phase, Free Running Mode.
Study of Stepper Motor in Full Step, Two Phase, Step Running Mode.
Study of Stepper Motor in Half Step, Free Running Mode.
Study of Stepper Motor in Half Step, Step Running Mode
