Users can easily understand the difference between the different modes of Controllers used. Square wave, triangular wave generator variable DC supply as set point and disturbance generator are provided on board.
Effect of PID can be seen on first order system and second order system in open loop and close loop system.

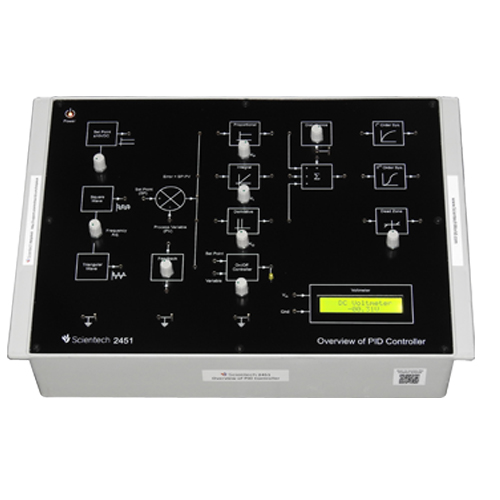

Scientech 2451,Overview of PID Controller is an ideal teaching aid?to enhance education, training, skills & development amongs our young minds.

Features

• Proportional, Integral and Derivative functions can be checked on same board ( configurable as P,I,D, PI, PD,PID )
• ON/OFF controller.
• Square and triangular wave with variable frequency for testing PID.
• Variable DC for set point.
• Error detector.
• Ist order system & IInd order system.
• In built power supply.
• Dead zone and disturbances generator.
• Built-in 3 DVM for DC measurement with three range selection.
• Voltmeter for DC measurement
• Signals can be observed and measured at various blocks
• On board Touch Switch

Scope of Learning

• Study of ‘On/Off’ Controller
• Study of open loop system
• Study of close loop system
• Study of close loop system with disturbance
• Study of steady state error
• Study of proportional Controller
• Study of Integrator Controller
• Study of Derivative Controller
• Study of proportional + integrator (PI) Controller
• Study of proportional + derivative (PD) Controller
• Study of proportional + integrator + derivative (PID) Controller
• Study of proportional + integrator + derivative (PID) in close Loop
• Study of proportional + integrator + derivative (PID) with first order system
• Study of proportional + integrator + derivative (PID) with Second order system
