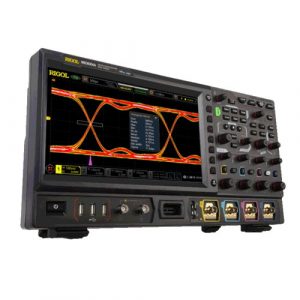

Digital Oscilloscope

DHO4000 Series

Share On:

DHO4000 series digital oscilloscope is designed to meet the designing, debugging, and testing requirements of the mainstream oscilloscope market. Adopting the brand-new chipset “Centaurus” developed by scientech, this series achieves a fast waveform capture rate of 1,500,000 wfms/s with the UltraAcquire mode, 500 Mpts memory depth, 12-bit vertical resolution, all combined with excellent noise floor performance and vertical accuracy to meet your requirements for more accurate measurements, bringing extraordinary T&M experience for you

 Features

  • Brand-new chipset “Centaurus” developed by scientech
  • Ultra-low noise floor at 18 μVrms in minimum
  • 12-bit vertical resolution[1]
  • 200/400/800 MHz analog bandwidth (selectable), 4 analog channels, and 1 EXT channel
  • Up to 4 GSa/s real-time sample rate
  • Max. memory depth: 500 Mpts (optional)
  • Min. vertical sensitivity: 100 μV/div
  • Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode
  • 10.1” 1280*800 HD touch display
  • User-friendly Flex Knobs, bringing smoother interaction
  • Standard photoelectric encoder operating knobs, effectively prolonging its service life
  • Standard USB Device & Host, LAN, and HDMI interfaces
  • Optional battery pack in a highly portable package for unlimited freedom
  • Support online version upgrade

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-In Signal Source Contrast
DS70304 3GHz 4 20GSa/s 2Gpts(opt.) 1,000,000 wfms/s
DS70504 5GHz 4 20GSa/s 2Gpts(opt.) 1,000,000 wfms/s
DS70304 3GHz 4 20GSa/s 2Gpts(opt.) 1,000,000 wfms/s
DS70504 5GHz 4 20GSa/s 2Gpts(opt.) 1,000,000 wfms/s

Probe





Passive Probe

Model Description Manual
RP1018H 18kV 150MHz High voltage probe DOWNLOAD
RP1300H 300MHz High voltage probe (2kV) DOWNLOAD
RP6150A 1.5GHz Passive low resistance probe (500ohm) DOWNLOAD
RP3500A 500MHz Passive high resistance probe DOWNLOAD

Active Probe

Model Description Frequency Type Manual
PVA8350 3.5GHz Active differential probe 3.5GHz Active differential DOWNLOAD
PVA8700 7GHz Active differential probe 7GHz Active differential DOWNLOAD
PVA7250 2.5GHz Active differential probe 2.5GHz Active differential DOWNLOAD
RP7150S 1.5GHz Active single-ended probe 1.5GHz Active single-ended DOWNLOAD
RP7150 1.5GHz Active differential probe 1.5GHz Active differential DOWNLOAD
RP7080S 800MHz Active single-ended probe 800MHz Active single-ended DOWNLOAD
RP7080 800MHz Active differential probe 800MHz Active differential DOWNLOAD

Current Probe

Model Description Frequency Current Rating Manual
PCA1150 Current probe: 10MHz, 150A 10MHz 150A DOWNLOAD
PCA2030 Current probe: 100MHz, 30A 100MHz 30A DOWNLOAD
PCA1030 Current probe: 50MHz, 30A 50MHz 30A DOWNLOAD
RP1000P 4CH Power Adapter
RP1001C 300KHz, 100A DC 300KHz 100A DOWNLOAD
RP1002C 1MHz, 70ADC 1MHz 70A DOWNLOAD
RP1003C 50MHz, 30A 50MHz 30A DOWNLOAD
RP1004C 100MHz, 30A 100MHz 30A DOWNLOAD
RP1005C 10MHz, 150A 10MHz 150A DOWNLOAD
RP1006C 2MHz, 500A 2MHz 500A DOWNLOAD

High Voltage Differential Probe

Model Description Frequency Voltage Range Manual
PHA1150 High voltage differential probe, DC-100MHz, 1500V DC-100MHz 1500V DOWNLOAD
PHA0150 High voltage differential probe, DC-70MHz, 1500V DC-70MHz 1500V DOWNLOAD
RP1100D 100MHz, 6.5KV 100MHz 6.5KV DOWNLOAD
RP1050D 50MHz, 6.5KV 50MHz 6.5KV DOWNLOAD
RP1025D 25MHz, 1.4KV 25MHz 1.4KV DOWNLOAD

Logic Probe

Model Description Channels Manual
RPL2316 MSO4000/2000A Logic probe, 16CH 16 DOWNLOAD
