Digital Oscilloscope

MSO5000 Series

Share On:

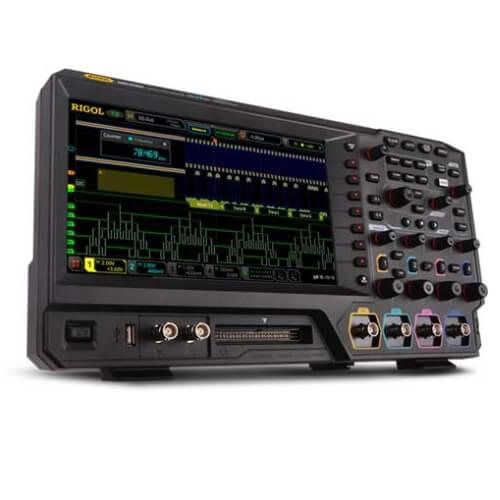

MSO5000 series digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch screen, the MSO5000 series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO series products support multiple channels, bandwidths, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.

Features

  • Analog bandwidth: 350 MHz, 200 MHz, 100 MHz, and 70 MHz; bandwidth upgrade option supported
  • 2 or 4 analog channels (upgradable), standard 16 digital channels(LA probe required)
  • Up to 8 GSa/s real-time sample rate
  • Up to 200 Mpts memory depth (option)
  • High waveform capture rate (over 500,000 wfm/s)
  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • A variety of serial protocol triggers and decodes
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
  • Independent search, navigation keys, and event table
  • Built-in advanced power analysis software (option)
  • Bode plot for loop test analysis
  • Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter, a frequency counter and totalizer, and a protocol analyzer
  • 9-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
  • Web Control remote command
  • Unique online version upgrade
  • Novel and delicate industrial design, easy to operate

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-in Signal Source
MSO5072 70MHz 2 8GSa/s 200Mpts (opt.) 500,000 wfms/s 16 25MHz, 2CH (opt.)
MSO5074 70MHz 4 8GSa/s 200Mpts (opt.) 500,000 wfms/s 16 25MHz, 2CH (opt.)
MSO5102 100MHz 2 8GSa/s 200Mpts (opt.) 500,000 wfms/s 16 25MHz, 2CH (opt.)
MSO5104 100MHz 4 8GSa/s 200Mpts (opt.) 500,000 wfms/s 16 25MHz, 2CH (opt.)
MSO5204 200MHz 4 8GSa/s 200Mpts (opt.) 500,000 wfms/s 16 25MHz, 2CH (opt.)
MSO5354 350MHz 4 8GSa/s 200Mpts (opt.) 500,000 wfms/s 16 25MHz, 2CH (opt.)

Probe




Passive Probe

Model Description Manual
RP1018H 18kV 150MHz High Voltage Probe DOWNLOAD
RP1300H 300MHz High Voltage Probe (2kV) DOWNLOAD
PVP2350 350MHz, 10:1/1:1, Passive High Resistance Probe (Single Strip) DOWNLOAD
RP6150A 1.5GHz Passive Low Resistance Probe (500ohm) DOWNLOAD

Current Probe

Model Description Manual
RP1000P 4CH Power Adapter
RP1001C 300KHz, 100A DC DOWNLOAD
RP1002C 1MHz, 70ADC DOWNLOAD
RP1003C 50MHz, 30A DOWNLOAD
RP1004C 100MHz, 30A DOWNLOAD
RP1005C 10MHz, 150A DOWNLOAD
RP1006C 2MHz, 500A DOWNLOAD

High Voltage Differential Probe

Model Description Manual
PHA1150 High Voltage Differential Probe, DC-100MHz, 1500V DOWNLOAD
PHA0150 High Voltage Differential Probe, DC-70MHz, 1500V DOWNLOAD
RP1100D 100MHz, 6.5KV DOWNLOAD
RP1050D 50MHz, 6.5KV DOWNLOAD
RP1025D 25MHz, 1.4KV DOWNLOAD

Logic Probe

Model Description Manual
PLA2216 16-channel logic analyzer probe Download
