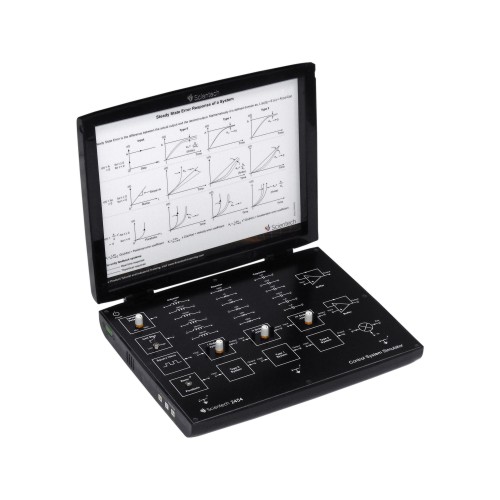

Scientech 2454 Control System Simulator helps the users to gain invaluable knowledge about Order and type of Control System. Square wave, Ramp wave, Parabolic wave, Unit step signal and variable DC supply are provided on board as standard inputs. On board Resistance, Capacitor and Inductor banks for studying different combination for the order of a system are also available.
Scientech 2454, Control System Simulator is an ideal teaching aid to enhance education, training, skills & development amongs our young minds.
Features
- Study of I Order System
- Study of II Order System
- Study of III Order System
- Study of Type 0 System
- Study of Type 1 System
- Study of Type 2 System
- Additional Resistance Bank
- Additional Capacitance Bank
- Additional Inductance Bank
- Variable Voltage Output
- Unit Step Output
- Square Wave Output
- Ramp Output
- Parabolic Output
- Buffers
- Ess Block
Scope of Learning
- To observe the First Order control system for different values of the Damping Ratio at different values of resistance
- To observe the Second Order control system for different values of the Damping Ratio at different values of resistance
- To observe the Third Order control system for different values of the Damping Ratio at different values of resistance
- To observe the Type0 control system Steady State Error (Ess) for Unit Step or Square wave input
- To observe the Type0 control system Steady state error (Ess) for Ramp as input
- To observe the Type0 control system Steady State Error (Ess) for Parabolic as input
- To observe the Type1 control system Steady State Error (Ess) for Unit Step or Square wave input
- To observe the Type1 control system Steady State Error (Ess) for Ramp as input
