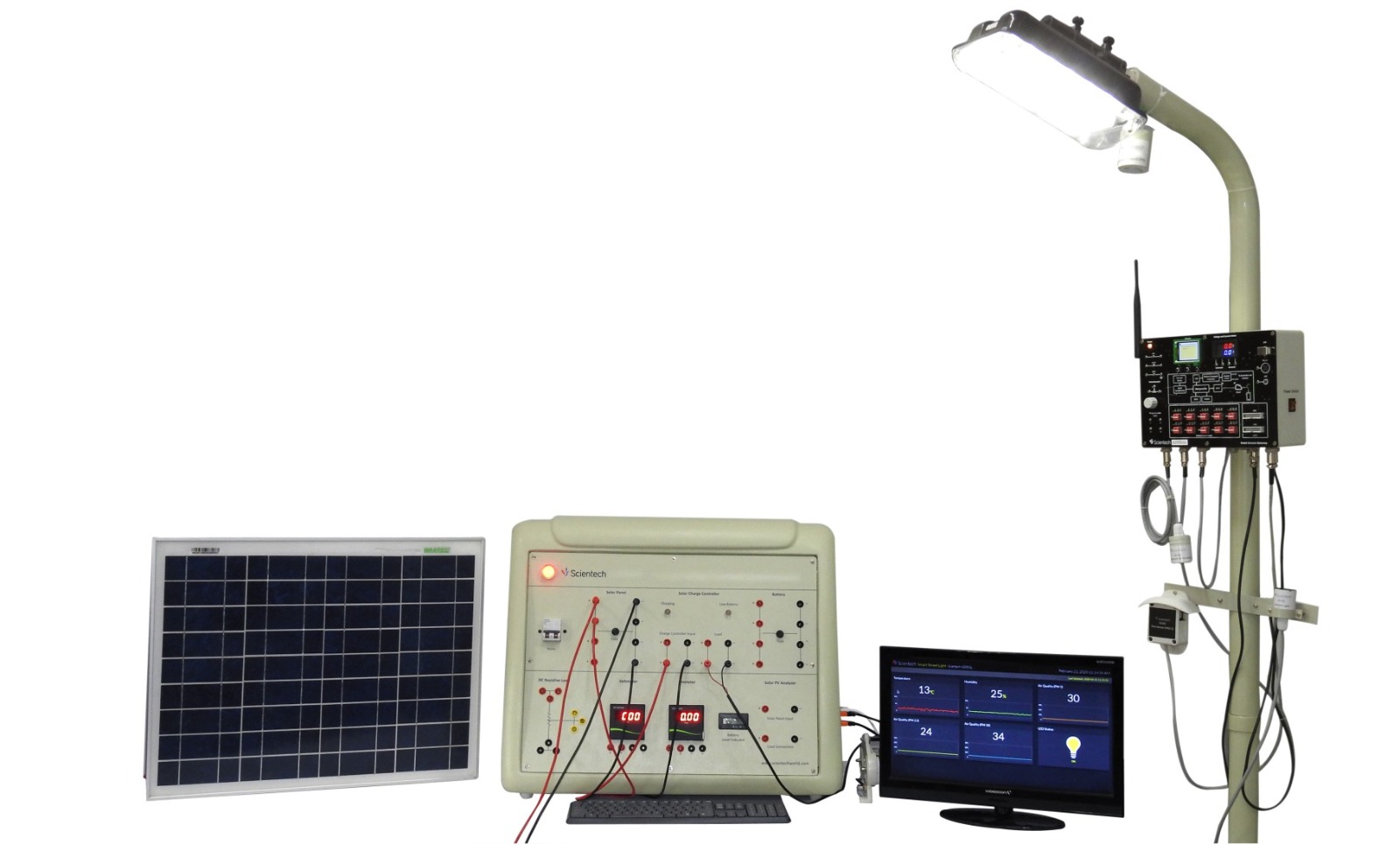

Solar Street Light

Technical Specifications

• The system is able to perform Real time Remote Monitoring of parameters like – Temperature, humidity, air
quality, motion data through sensors On/OFF Status of light pole on console,
• Processor: 64bit cortex A53 ARMv8 Quad core processor 1.4GHz
• Connectivity: 802.11 b/g/n Wireless LAN, Bluetooth 4.1, ZigBee, USB & Ethernet RAM: 1GB LPDD2
• Memory: 32GB OS: Linux
• Ethernet: 10/100 base T Ethernet socket
• Video output: HDMI and composite RCA USB port: 4 nos.
• BS 10 terminals and specially designed patch cords are provided to protect from danger.
• BS10 safety terminals are in compliance with IS302-1/IEC60335-1, tested from NABL accredited Lab
• Control Panel is consist of high grade FRP material for better safety and in compliance with IS302-
1/IEC60335-1, tested from NABL accredited Lab
• Smart pole and node
• Microcontroller: ATMega2560
• Sensors and actuator connector: 10 nos.
• Digital input/output pins: 34 nos.
• Analog input pins: 16 nos.
• UART: 2 nos.
• I2C: 1 no.
• Switch faults: 30 nos.
• Test points: 30 nos.

• Power Supplies: 5V and 3.3V
• Variable potentiometer: 1 no (10K)
• Switches: 3 nos.
• Digital voltmeter and ammeter: 0 – 25V/10A
• Buzzer and LED: 1 no. each Color
• LCD: 1.77 inch (approx)
• USB: 2.0
• Wi-Fi module: 1no. (2.4GHz)
• ZigBee transceiver: 1no. (2.4GHz/63mW)
• Flash memory: 256 kb (of which 8 KB shousd used by boot loader)
• SRAM: 8 KB
• EEPROM: 4 KB
• Clock speed: 16 MHz PIR sensor: TTL
• Temperature sensor: 0 – 100° C
• Humidity sensor: 0 – 100 %RH
• Air quality sensor: PM, PM2.5, PM10 Ambient light sensor: Analog output
• Solar panel: 40W
• Battery: 12V, 26 Ah
• Charge controller: 12V, 0.7A
• LED light: 10W
• Rheostat: 100 Ohm, 3A MCB: 16A

• DC ammeter: 5A
• DC voltmeter: 100V
• Battery level indicator display: 8-70V
• Power Supply: 110V – 260V AC, 50Hz
• Rheostat – 100 Ohm, 3A (01 no),
• 4mm BS-10 Banana Patch cords (25 nos.),
• Keyboard & mouse, structure for Solar Panel
