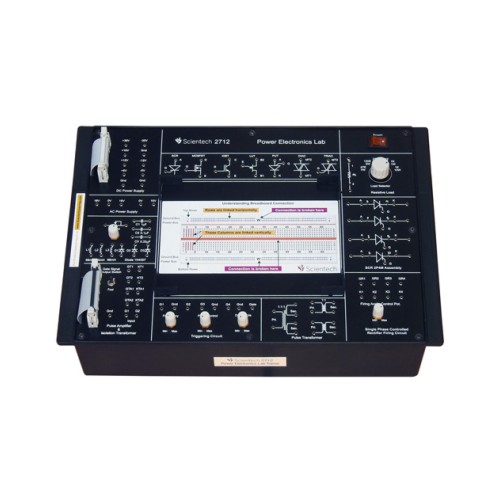

Power Electronics Lab

Scientech 2712

Share On:



Power Electronics Lab Scientech 2712 is a universal learning platform which is very useful for Students to understand the concept of power electronics. Students can perform experiments like VI characteristics of the power electronic devices, single phase controlled rectifiers, DCDC choppers etc. This Lab is provided with a bread board for testing their own circuits. Power Electronics Lab is provided with built-in AC & DC power supplies and exhaustive learning material.

Scientech 2712, Power Electronics Lab is an ideal platform to enhance education, training, skills & development among our young minds.

 Features

  • Self contained & easy to operate
  • Functional blocks indicated on board mimic
  • Breadboard for
  • In built DC Power Supplies
  • In built AC Power Supplies
  • Onboard pulse generator with frequency and duty cycle control.
  • On board single phase rectifier firing circuit with firing angle control
  • On board thyristor devices
  • On board pulse amplifier and isolation transformer
  • On board variable load and circuit components

Scope of Learning

  • V-I characteristics of power devices
  • Study of firing Schemes
  • Controlled rectifiers
  • DC-DC chopper
  • Inverter Own circuit Development
