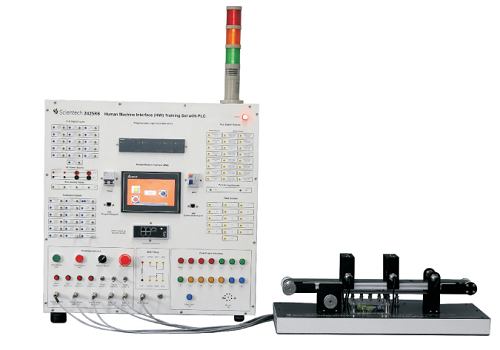

Scientech 2425RB HMI & PLC based Process Training System with conveyor belt application helps teach and
familiarize students with real-life PLC and HMI application in automation and mechatronics industry. Operation
and control of a conveyor using PLC and HMI is demonstrated. Various electro-mechanical components are
controlled by a PLC and HMI.

Features

• Industry standard, modular PLC with minimum 16 digital inputs, 16 digital outputs, 2 analog inputs and 1 analog output.
• Human machine interface.
• This system includes E-stop button, green pushbutton, red pushbutton, selector switch intermittent buzzer, 24V DC power supply , MCB , ELCB, DPDT relay, tower light.
• Different types of sensors like thru – beam sensor, diffuse reflective sensor.
• Conveyor belt with DC brushless motor and its driver.
• Experiments performed using a patch cord.
• PC based ladder and HMI programming.
• User friendly software.
• Easy downloading of programs.
• Compact tabletop ergonomic design.
• Ready assignment details.
• Robust construction.
