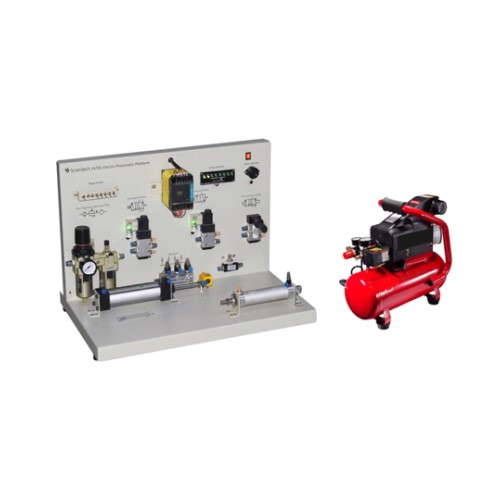

A Pneumatic system is a system that uses compressed air to transmit and control energy. Scientech 2470L Electro Pneumatic Platform is designed to demonstrate the design, construction and application of pneumatic components and circuits. It integrates PLC technology to build Hybrid Industrial automation systems with pneumatic components and modules.

Pneumatic systems provide the power needed to control aircrafts, operate heavy dump trucks, excavators, operate the brakes in our cars and even power lifts in tall buildings. PLC provides flexibility to design and build numerous systems using software and I/O interfaces without changing hard wired connections.

Features

• PLC operated pneumatic platform
• PLC with 8 digital inputs, 6 digital outputs
• Industrial look & feel
• Toggle switches, LEDs, buzzer, double acting cylinder, solenoid valve, flow control valve, manifold, hand lever valve, proximity sensor, FRL, single acting cylinder, and air compressor
• Function and identification of pneumatic components and their symbols
• Powerful instruction sets
• Extremely easy and student friendly software
• Several sample ladder programs
• Understanding of industrial pneumatic components
• Sequential & linear pneumatic control
• Robust construction
• Pneumatic safety awareness
• Board to pin up documents
• Mounting panel for pneumatic components
