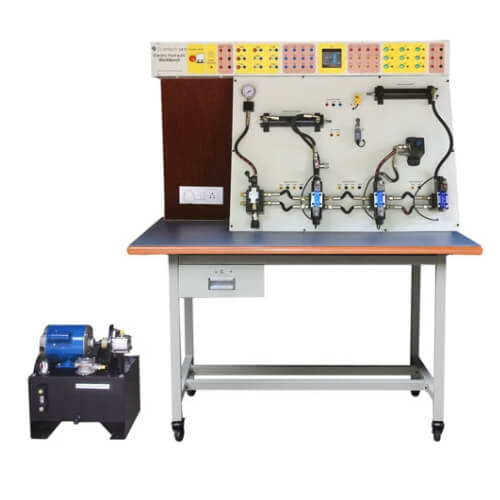

Scientech 2471 Electro Hydraulic Workbench is designed to demonstrate the design, construction and application of Hydraulic components and circuits. It integrates PLC technology to build hybrid Industrial Automation systems with Hydraulic components and modules.

Hydraulic technology is found in numerous areas of engineering. Students investigate the basic “building blocks“ of modern Hydraulics and how they are interconnected to form systems. Hydraulic Systems provide the power needed to control metal forming machinery, conveyor systems, component test stands, foundries and primary metals plants, presses, including cushions, clutches and brakes, automated assembly systems, packaging systems, pulp and paper industries, material handling, and robotic systems. PLC provides flexibility to design and build numerous systems using software and I/O interfaces without changes to the hard wired connections.

Features

• PLC operated Electro Hydraulic platform
• 12 Digital Inputs, 8 Digital Outputs
• Open platform to explore wide PLC and Hydraulic applications
• Industrial feel & look
• DIN rail mounting for PLC
• Function and identification of Hydraulic components and their symbols
• Powerful instruction sets
• High execution speed
• Extremely easy and student-friendly software
• Several sample Ladder programs
• Practice troubleshooting skills
• Extensive Learning
• Workbench has 4 wheels, suitable for movement installation
• Robust construction
• Toggle switches, LEDs, buzzer, double-acting cylinder, solenoid valve, flow control valve, manifold, hand lever valve, limit switch, hydraulic motor, single-acting cylinder, proximity sensor, power pack
• Board to attach documents
• 4 mm patch cord connections
• Mounting panel for Hydraulic components
• Two storage drawers with telescopic locking facility, place in drawers for meters, patch cords, components, breadboard, and other accessories for storage, easy identification, and access inside the drawers.
• MCB for ON/OFF control and overload protection
• Provision for PC – CPU
• Sequential & linear Hydraulic control
• Understanding of Industrial Hydraulic components
• Hydraulic safety awareness
• Product tutorial Online
