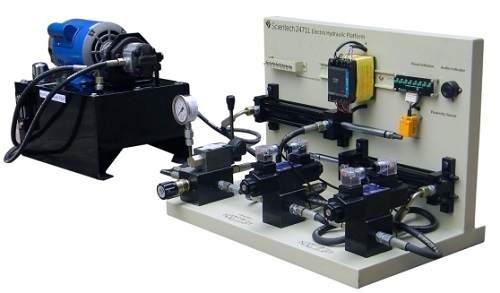

Hydraulic is used for generation control and transmission of fluids in order to produce some mechanical work Scientech 2471L Electro Hydraulic Platform is designed to demonstrate the design, construction and application of Hydraulic components and circuits. It integrates PLC technology to build hybrid Industrial automation systems with hydraulic components and modules.

Hydraulic technology is found in numerous areas of engineering. Students investigate the basic ?building blocks? of modern Hydraulics and how they are interconnected to form systems. Hydraulic systems provide the power needed to control metal forming machinery, conveyor systems, component test stands, foundries and primary metals plants, presses, including cushions, clutches and brakes, automated assembly systems, packaging systems, pulp and paper industries, material handling, and robotic systems.

PLC provides flexibility to design and build numerous systems using software and I/O interfaces without changes to the hard wired connections.

Features

• PLC operated hydraulic platform
• PLC with 8 digital inputs, 6 digital outputs
• Industrial feel & look
• Toggle switches, LEDs, buzzer, double acting cylinder, solenoid valve, manifold, hand lever valve, single acting cylinder, proximity sensor and power pack
• Function and identification of hydraulic components and their symbols
• DIN rail mounting for PLC
• Powerful instruction sets
• Extremely easy and student friendly software
• Several sample Ladder programs
• Understanding of Industrial Hydraulic components
• Sequential & linear Hydraulic control
• Robust construction
• Mounting panel for Hydraulic components
• High execution speed
• Hydraulic safety awareness
