Digital Oscilloscope

DS1000Z Series

Share On:

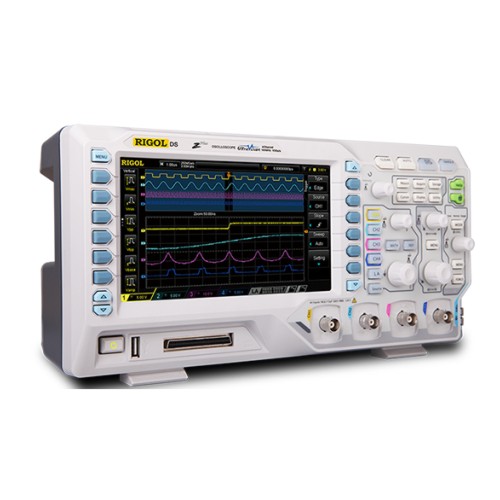

The DS1000Z Series Digital Storage Oscilloscope is one of the best and fast moving model. It offers deep memory ,serial trigger bus decoding,high waveform capture rate and advanced math functions. The Plus series models provides an added advantage of upgrading to MSO 16 Digital Channel with RPL1116 logic probe.

 Features

  • Analog channel bandwidth: 100 MHz, 70 MHz, 50 MHz
  • 4 analog channels, 16 digital channels (only available for DS1000Z Plus that has been upgraded with the MSO upgrade option)
  • Real-time sample rate up to 1 GSa/s
  • Memory depth up to 24 Mpts
  • Up to 30,000 wfms/s waveform capture rate
  • Up to 60,000 frames hardware real-time waveform recording and playback functions
  • Innovative “UltraVision” technology
  • Various trigger and bus decoding functions
  • Low noise floor, vertical scale range: 1 mV/div to 10 V/div
  • Built-in dual-channel 25 MHz function/arbitrary waveform generator (only for digital oscilloscope with source channels)
  • Various interfaces: USB Host&Device, LAN (LXI), AUX
  • Compact size, light weight, easy to use
  • 7 inch WVGA (800×480) TFT LCD, intensity graded color display

 Model

Model Bandwidth Analog Channels Real-time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-in Signal Source
DS1054Z 50MHz 4 1GSa/s 24Mpts 30,000 wfm/s N/A N/A
DS1074Z Plus 70MHz 4 1GSa/s 24Mpts 30,000 wfm/s 16 (Probe opt.) N/A
DS1074Z-S Plus 70MHz 4 1GSa/s 24Mpts 30,000 wfm/s 2 N/A
DS1104Z Plus 100MHz 4 1GSa/s 24Mpts 30,000 wfm/s N/A N/A
DS1104Z-S Plus 100MHz 4 1GSa/s 24Mpts 30,000 wfm/s 2 N/A



Probe




Passive Probe

Model Description Manual
PVP3150 150MHz, 10:1/1:1, Passive high resistance probe (Single pack) Download
RP1010H 10kV 50MHz High voltage probe Download
RP1018H 18kV 150MHz High voltage probe Download
RP1300H 300MHz High voltage probe (2kV) Download
PVP2150 150MHz, 10:1/1:1, Passive high resistance probe (Single strip) Download
PVP2350 350MHz, 10:1/1:1, Passive high resistance probe (Single strip) Download

Current Probe

Model Description Manual
RP1000P 4CH Power Adapter
RP1005C 10MHz, 150A Download
RP1004C 100MHz, 30A Download
RP1003C 50MHz, 30A Download
RP1002C 1MHz, 70ADC Download
RP1001C 300KHz, 100A DC Download

High Voltage Differential Probe

Model Description Manual
PHA1150 High voltage differential probe, DC-100MHz, 1500V Download
PHA0150 High voltage differential probe, DC-70MHz, 1500V Download
RP1100D 100MHz, 6.5KV Download
RP1050D 50MHz, 6.5KV Download
RP1025D 25MHz, 1.4KV Download

Logic Probe

Model Description Manual
RPL1116 MSO1000Z Logic probe, 16CH Download
