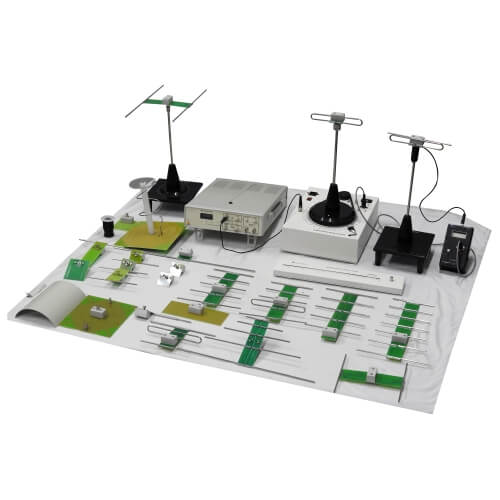

Scientech Antenna platform Scientech 2262 is a student friendly trainer kit for studying characteristics of different antennas. Scientech 2262 is designed so that students can take the readings and plot the polar plots themselves, thus understanding the subject thoroughly. They can even stop & repeat the readings in between if needed.

All the antennas are made by high conducting rods with chrome finish for long durability and mounted on the glass epoxy PCB for easy mounting and dismounting Areas of Experimentation and Study

• Polar plot & Polarization of various antennas.
• Wave modulation and Demodulation
• Antenna Gain
• Antenna Beam Width.
• Element Current study.
• Front-Back Ratio study.
• Antenna matching.
• SWR measurement.
• Antenna radiation with distance.
• Antenna bandwidth measurement

Scientech 2262, Antenna Platform is an ideal teaching aid to enhance education, training, skills & development amongs our young minds.

Features

• Self contained, simple and student friendly trainer
• Hands on set-up for measuring and plotting radiation patterns of different Antennas
• Built in RF & Modulation generators
• Built in frequency display
• Antenna Matching Stub
• Characteristics and SWR measurement
• Transmitting and Receiving levels observed on meters
• Built in DC power supply
• Fully documented, Operating manual and polar charts (2 types) with each trainer
• �Antenna kit� for fabricating special antenna
• Compact design
• Light weight

Scope of Learning

• Study of Simple Dipole l/2 Antenna

• Performing Polarisation Test and Modulation Test

• Study of Reciprocity Theorem

• Study of variations in the radiation strength at a given distance from the antenna

• Antenna Current Sensor and SWR Measurement

• Study of Rhombus Antenna, Ground Plane Antenna, Slot Antenna, Helix Antenna and antenna bandwidth
