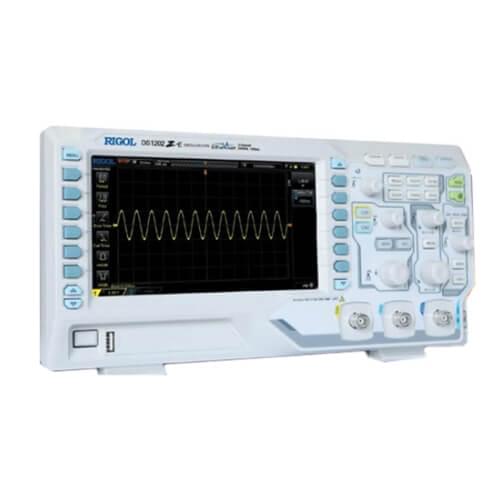

DS1000Z-E series is a high-performance and economic digital oscilloscope designed for the designing, debugging and educational requirements of the mainstream digital oscilloscope market.
| Model | Bandwidth | Analog Channels | Real-Time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels | Built-In Signal Source |
|---|---|---|---|---|---|---|---|
| DS1202Z-E | 200MHz | 2 | 1GSa/s | 24Mpts | 30,000wfm/s | – | – |
| DS1102Z-E | 100MHz | 2 | 1GSa/s | 24Mpts | 30,000wfm/s | – | – |
| Model | Description | Manual |
|---|---|---|
| PVP3150 | 150MHz, 10:1/1:1, Passive high resistance probe (Single pack) | DOWNLOAD |
| RP1018H | 18kV 150MHz High voltage probe | DOWNLOAD |
| RP1300H | 300MHz High voltage probe (2kV) | DOWNLOAD |
| PVP2150 | 150MHz, 10:1/1:1, Passive high resistance probe (Single strip) | DOWNLOAD |
| PVP2350 | 350MHz, 10:1/1:1, Passive high resistance probe (Single strip) | DOWNLOAD |
| Model | Description | Manual |
|---|---|---|
| RP1000P | 4CH Power Adapter | – |
| RP1005C | 10MHz, 150A | DOWNLOAD |
| RP1004C | 100MHz, 30A | DOWNLOAD |
| RP1003C | 50MHz, 30A | DOWNLOAD |
| RP1002C | 1MHz, 70ADC | DOWNLOAD |
| RP1001C | 300KHz, 100A DC | DOWNLOAD |
| Model | Description | MANUAL |
|---|---|---|
| PHA1150 | High voltage differential probe, DC-100MHz, 1500V | DOWNLOAD |
| PHA0150 | High voltage differential probe, DC-70MHz, 1500V | DOWNLOAD |
| RP1100D | 100MHz, 6.5KV | DOWNLOAD |
| RP1050D | 50MHz, 6.5KV | DOWNLOAD |
| RP1025D | 25MHz, 1.4KV | DOWNLOAD |
| Model | Description | Manual |
|---|---|---|
| RPL1116 | MSO1000Z Logic probe, 16CH | DOWNLOAD |
