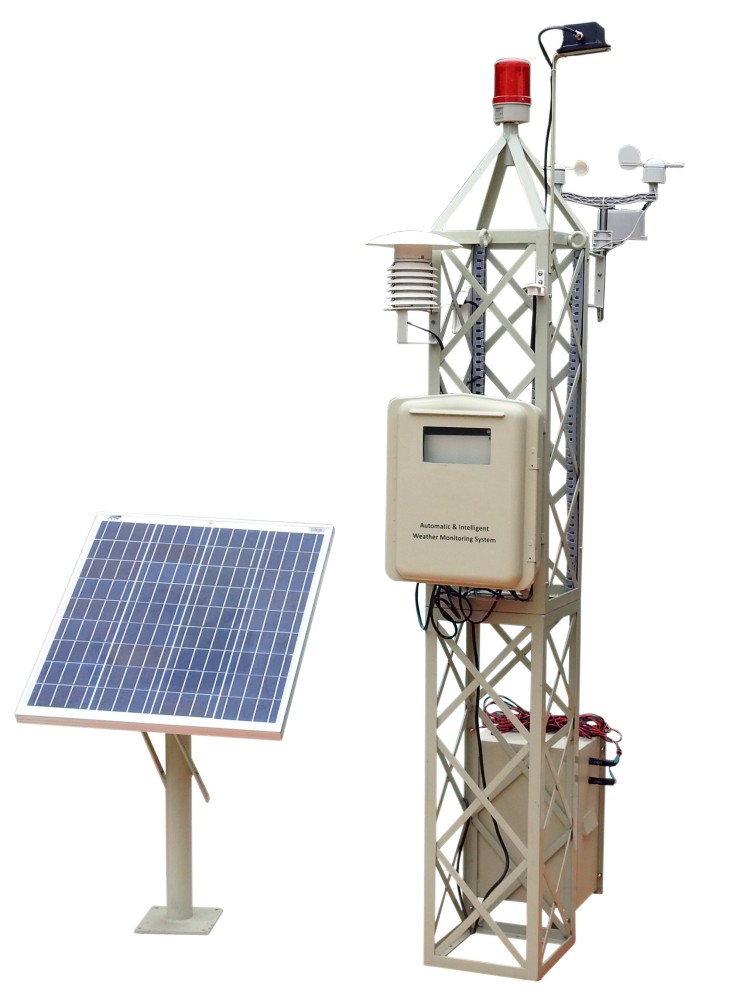

Weather Monitoring Station

Features

• Epoxy coated tower type structure for robust and aesthetic look and Detachable Assembly.
• Application Dashboard for remote monitoring and analysis.
• The system is based on the microcontroller, a high-performance, low-power 8-bit AVR RISC microcontroller. It features 128KB Flash, 4KB SRAM, 4KB EEPROM, multiple I/O interfaces, and operates at up to 16 MHz with advanced communication and control capabilities.
• The temperature sensor operates within a range of -10°C to 90°C, ensuring reliable performance across varying environmental conditions. It provides a measurement resolution of 1°C for accurate
temperature monitoring.
• The relative humidity sensor measures across a full range of 0 to 100%. It offers a resolution of 5% for effective atmospheric humidity assessment.
• The wind speed sensor supports measurement from 0 to 20 m/s. It delivers readings with a resolution of 1 m/s for consistent wind velocity analysis.
• The wind direction sensor detects primary and intermediate directions including North, East, West, South, and intercardinal points. It enables comprehensive monitoring of wind patterns.
• The rainfall sensor utilizes a tipping bucket mechanism with an unlimited operating range. It provides ±2%
accuracy at 1.5 inches per hour and a resolution of 0.1 mm.
• The solar radiation sensor operates within a range of 10 to 2000 W/m². It ensures ±5% accuracy with a resolution of 10 W/m² for precise solar intensity measurement.
• The air quality sensor measures particulate concentration from 0 to 12,500 μg/m³. It provides ±5% accuracy with a resolution of 40 μg/m³ for reliable air quality monitoring. The atmospheric pressure sensor operates within a range of 15 to 115 kPa. It delivers ±1.5% accuracy with a resolution of 0.12 kPa for precise pressure
measurement.
• The UV index sensor measures radiation from 0 to 15 mW/cm² at 365 nm wavelength. It offers ±2.5% accuracy, 1 mW/cm² resolution, and sensitivity to both UV-A and UV-B.
• The system includes a 75W solar panel with an open-circuit voltage of 21V and short-circuit current of 4.76A.
• The power system incorporates a 12V, 42Ah battery for reliable energy storage. It is supported by a 10A charge controller for efficient power management.
