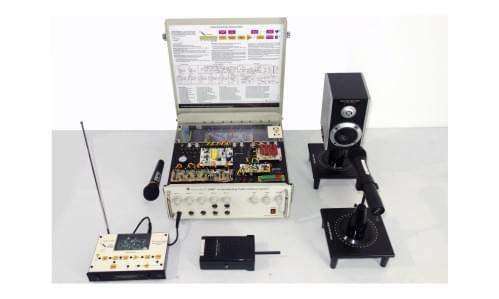

Scientech 2660 Understanding Public Address System is a comprehensive training platform to learn the
operation of Public Address System. It is demonstrator cum training system specifically designed for the
comprehensive practical study on Public Address System for the beginners with a basic knowledge of the various electronic building blocks and fundamentals of communication system.
This didactic product develops the sense of investigation within the student and familiarises him with repair
techniques/design techniques. One of the main features of this training system is fault simulation to educate on actual fault finding, by simulating faults on this platform. The complete block diagram of Public Address System is printed on the mimic. Finally this equipment allows us to do experiments and to observe
waveforms/signals/voltages of different sections, which are guided thoroughly by theory and product tutorials to gain in-depth knowledge of the system.

Features

• Superior quality 100W high power Public Address System
• Bass and Treble tone controls with Master control
• Complete block diagram of a Public Address System on-board
• The different circuit boards of Public Address System are exposed on a PCB
• 3 Speaker outputs (4 ? /8 ? /16? )
• 5 Mic and 2 Aux Inputs
• Easy identification of different parts and components of the system at a glance
• Easy measurement of voltages and observation of waveforms on test points
• Soldering free Fault creation and troubleshooting
