Spectrum Analyzer

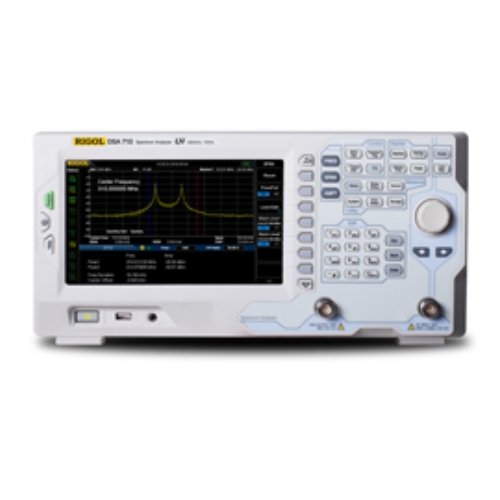

Rigol - DSA700 Series

Share On:



Entry level spectrum analyzers for education, IoT, hobby, and radio applications 500 MHz and 1 GHz models with option for Seamless Signal Capture, EMI, and more

Features:

Down to 10Hz Minimum Resolution Bandwidth (RBW)

Provides high resolution to separate signals with similar frequencies enabling easier signal identification

EMI PreCompliance Measurements (Option)

The DSA700 has an EMI filter (6 dB) and a quasi-peak detector to make EMI pre-test/diagnostics more accurate, and complete test and report generation using the host computer software S1210.

Excellent Noise Floor Reduction for Weak Signal Testing

Testing of weak signals is susceptible to the noise floor of the spectrum analyzer itself. The DSA700 series displays an average noise level as low as -130dBm (normalized to 100Hz), which effectively guarantees the ability to test weak signals.

ASK/FSK Signal Capture with Fast Capture

ASK/FSK modulation is usually used for car remote control keys, TPMS tire pressure modules and small wireless modules. The DSA700 can perform ASK/FSK signal capture through the SSC-DSA function extension, and has built-in 2FSK test function to directly obtain parameters such as center frequency, power and offset.



Model

Model Frequency Range Tracking Generator
DSA705 100 KHz – 500 MHz NA
DSA710 100 KHz – 1 GHz NA
