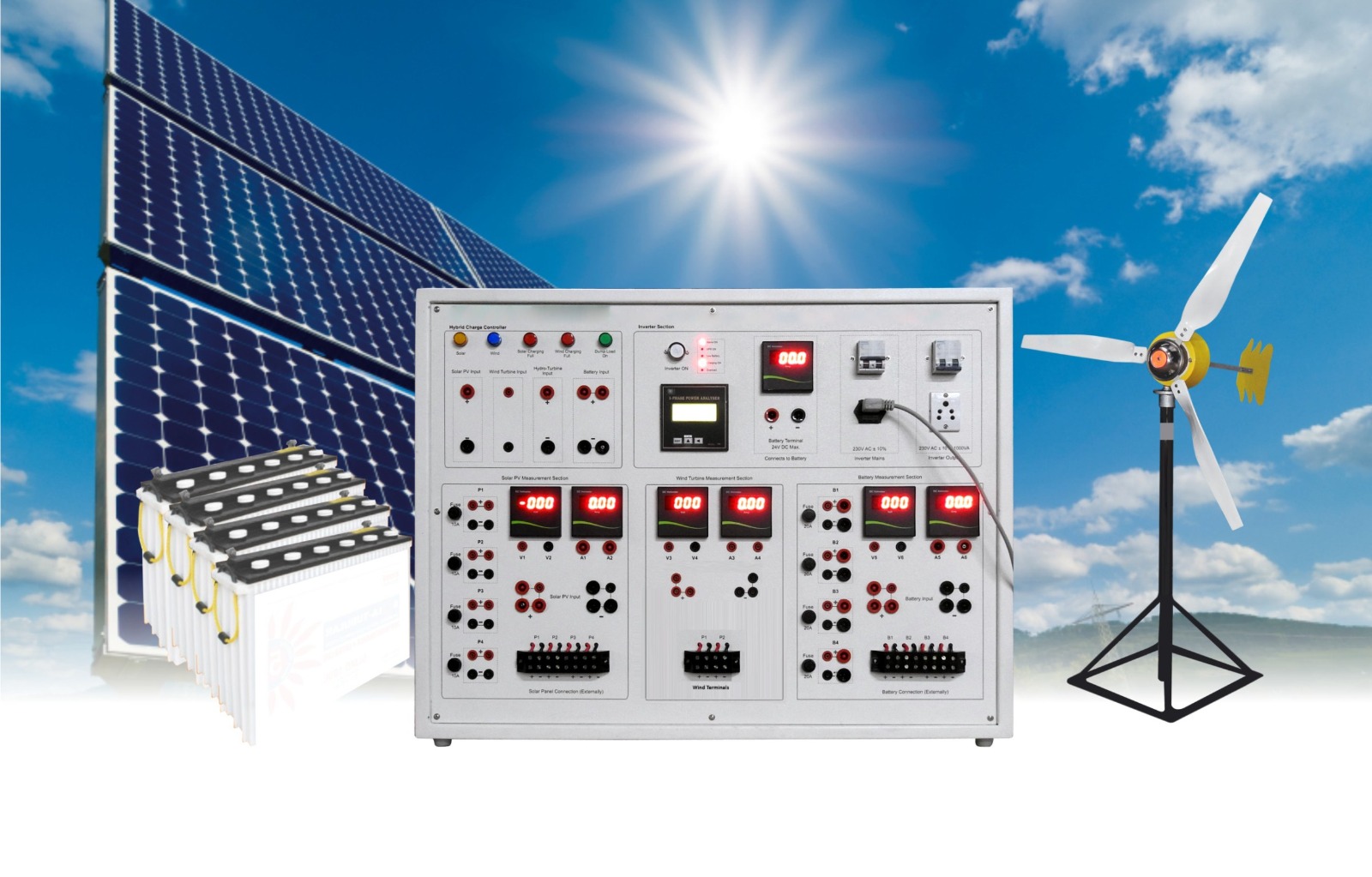

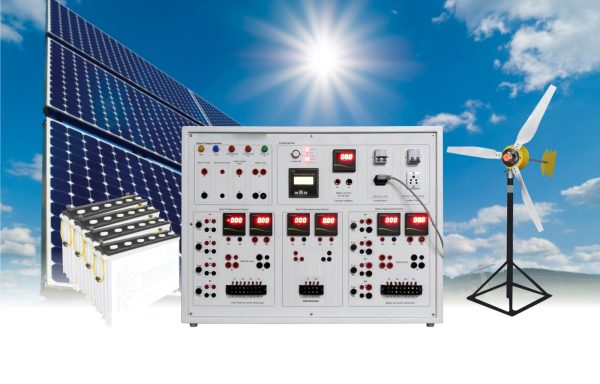

Solar, Wind and Hybrid Power Plant

Features and Specifications

• Hybrid Control panel has both Solar and Wind turbine inputs.
• Solar PV Modules Wattage: 1Kwatt minimum
• Solar panels are Bifacial Monoperc type for better efficiency
• Battery: – 75Ah (2 nos.)
• DC cable (positive & negative both) of 70 meter or more with MC 4 Connectors is provided for roof top
installation.
• Wind Turbine : 300 watt
• Charging Current: minimum 300mA approx.
• Actual Output Power : minimum 10watt (generated at wind speed of 4-6 m/sec while indoor testing)
• Solar Structure – GI type
• AC voltmeter & AC ammeter, DC voltmeter
• AC multifunction meter
• Blower for wind turbine – Wind speed upto 5m/s charge controller -Hybrid type
• Inverter Capacity : 1KVA
• Output voltage : between 200- 240V
• BS 10 terminals and specially designed patch cords are provided to protect from danger.
• BS10 safety terminals are in compliance with IS302-1/IEC60335-1, tested from NABL accredited Lab
• Control Panel is consist of high grade FRP material for better safety and in compliance with IS302-1/IEC60335-1, tested from NABL accredited Lab.
