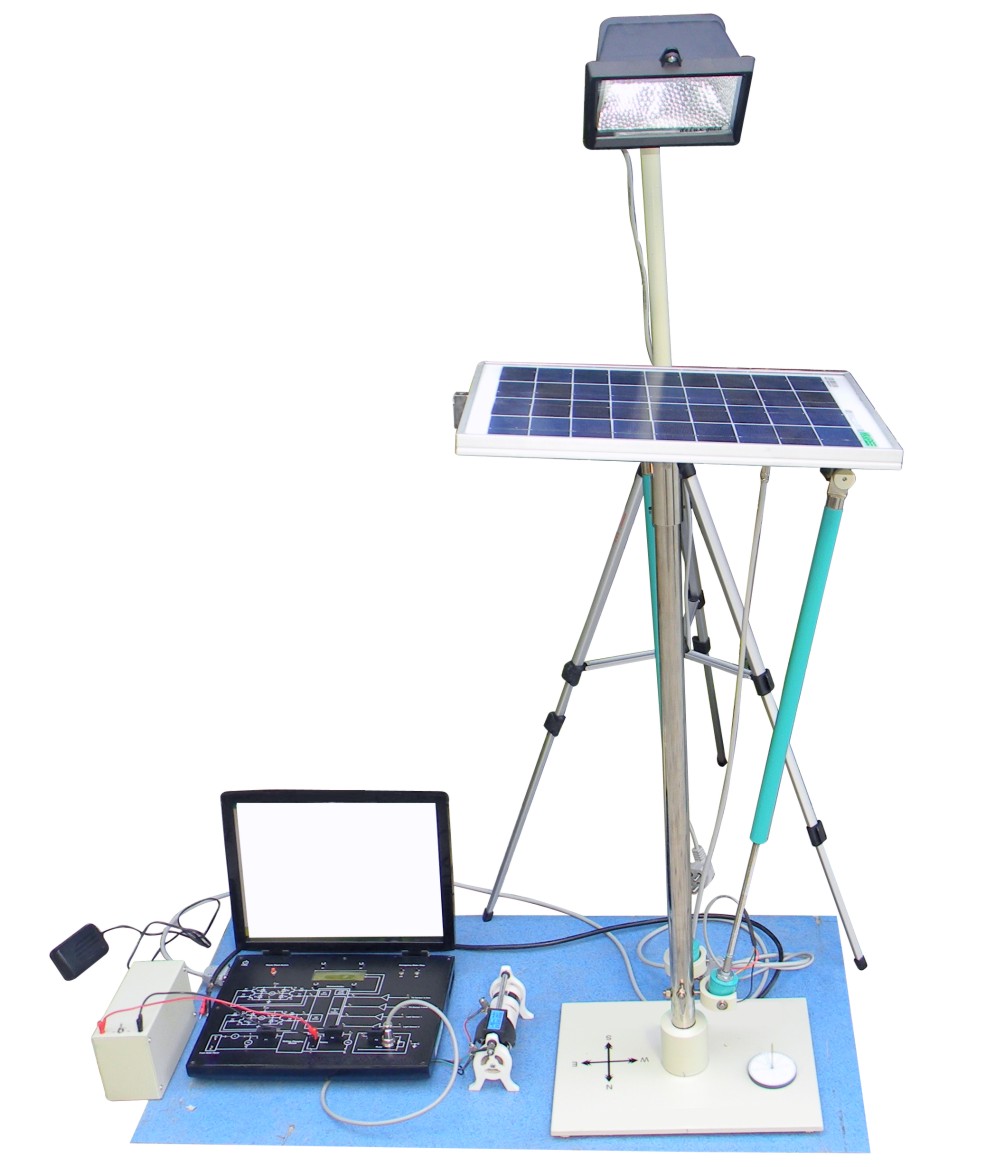

Solar Tracker Demonstrator Kit

Technical Specifications

• Supply Voltage: 12V DC.
• Solar Panel
• Maximum Output: 18W Power (Pm)
• Open Circuit: 21V DC Voltage (Voc)
• Short Circuit: 1.07A Current (Isc)
• Max. Output: 17V Voltage (Vmp)
• Max. Current (Im): 1.06A DC Motor: 12V
• Rechargeable Battery: 12V, 7Ah
• Display: 20 x 4 LCD
• Light Sensor: Phototransistor
• Acceleration/Vibration: +5V @ 1ma current/Tilt Sensor – 3 Axis
• Fuse: 1Amp (3 Nos.)
• DC Adaptor : 12V @ 1Amp
• With 8-bit AVR microcontroller running up to 20 MHz with an
• Operating voltage of 1.8–5.5 V.
• It has 32 KB Flash, 2 KB SRAM, and 1 KB EEPROM for program and data storage.

Complete training system to study the fundamentals of Solar Tracking
• Single-axis and Dual-axis Tracking
• Manual, Time and Auto Modes of operation in Single Axis Solar Tracking
• Manual mode of operation in Dual- axis Solar Tracking Master Reset Switch for recovery of System
• Atmega32 based design with Rheostat 1.6A , 100ohm
• Halogen Lamp of 500 Watt with Tripod
• Emergency Motor Stop Switches
• Tilt Sensors for sensing angle of panel with respect to horizontal plane.
• Facility for charging battery using Solar energy as well as DC supply
