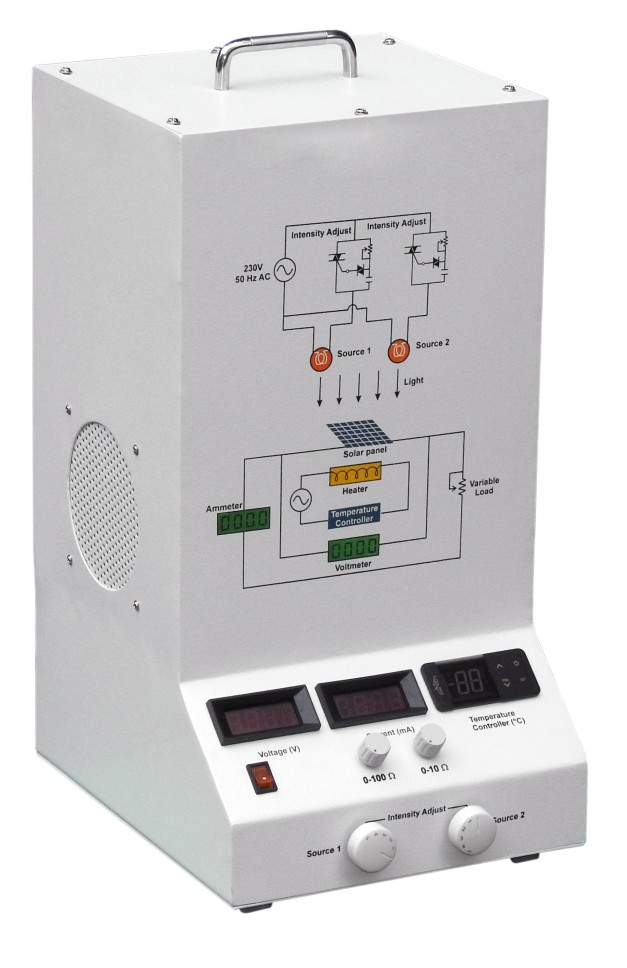

Solar Simulator for solar cell characteristic study

Features and Specifications

• Complete system to study the fundamentals of Solar Simulation
• Digital Display for voltage and current measurement
• Quartz Halogen Lamp as a Light source Programmable Temperature Controller Heater for heating test of solar cell
• Variable Intensity available for testing
Supply Voltage : 220V AC, 50Hz
Solar Cell
Open Circuit Voltage (Voc) : 1.8 to 2V DC (approx.)
Short Circuit Current (Isc) : min 150mA (approx.)
Quartz Halogen lamp : 220V, 50Watt
Voltmeter : 0-20V
Ammeter : 0-2000mA
Intensity Control : Variable (In five steps)
Temperature Controller : up to 99°C
Heater : 25 Watt
Load Resistance : 0-100 ? 10 turn
0-10 ? 1 turn
Fuse : 1Amp
