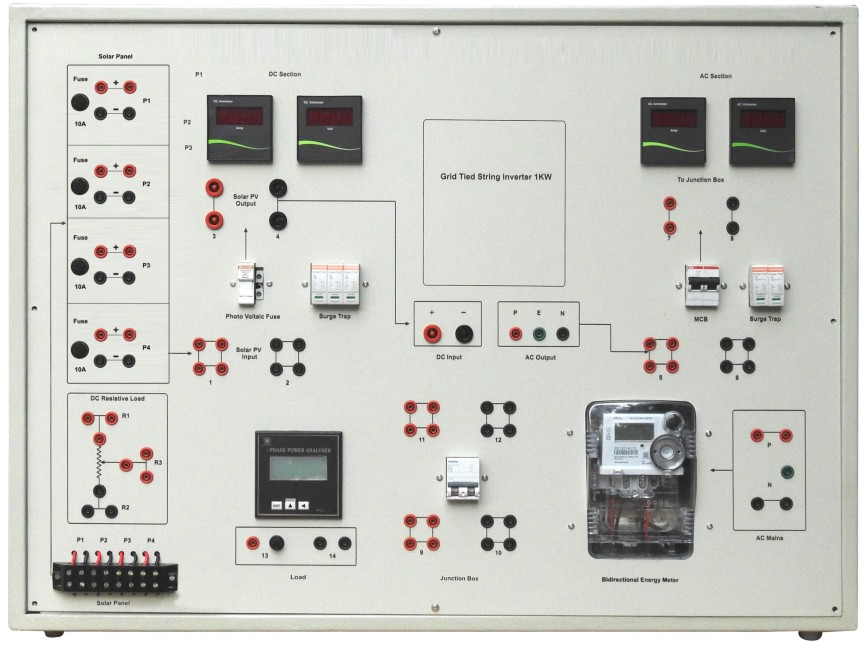

Solar Grid Tied Inverter Demonstrator Training Kit

Technical Specifications

• Solar panel Power:1000Wp
• Type-Polycrystalline
• Single phase grid tied inverter-inbuilt Rated output power: 1kW
• Max DC input voltage:450V Max
• DC input current: 10A
• Rating grid voltage: 230 Vac
• Grid voltage range:180Vac-230Vac
• Grid rating output current: 4.3A
• Rating grid frequency: 50Hz
• Topology: Transformer less
• Protection: DC reverse polarity, AC short circuit, etc.

Digital Meters:
• DC Voltmeter: 300V (1no.)
• DC Ammeter: 20A (1no.)
• AC Voltmeter:450V (1no.)
• AC Ammeter: 10A(1no.)

Bidirectional energy meter:1no.
Multi function meter:1no.

• Terminals – BS 10 safety type with Patch cords

Protection devices
• DCDB (DC distribution):1no.
• ACDB (AC distribution):1no.

Structure for Solar Panel
• Material: GI
• Assembly: Detachable and easy to install
• Load: AC/DC Resistive (Lamp Load)
• Load range: 0 – 1.2 kW, in steps of 100W, it has onboard 10A ammeter.
