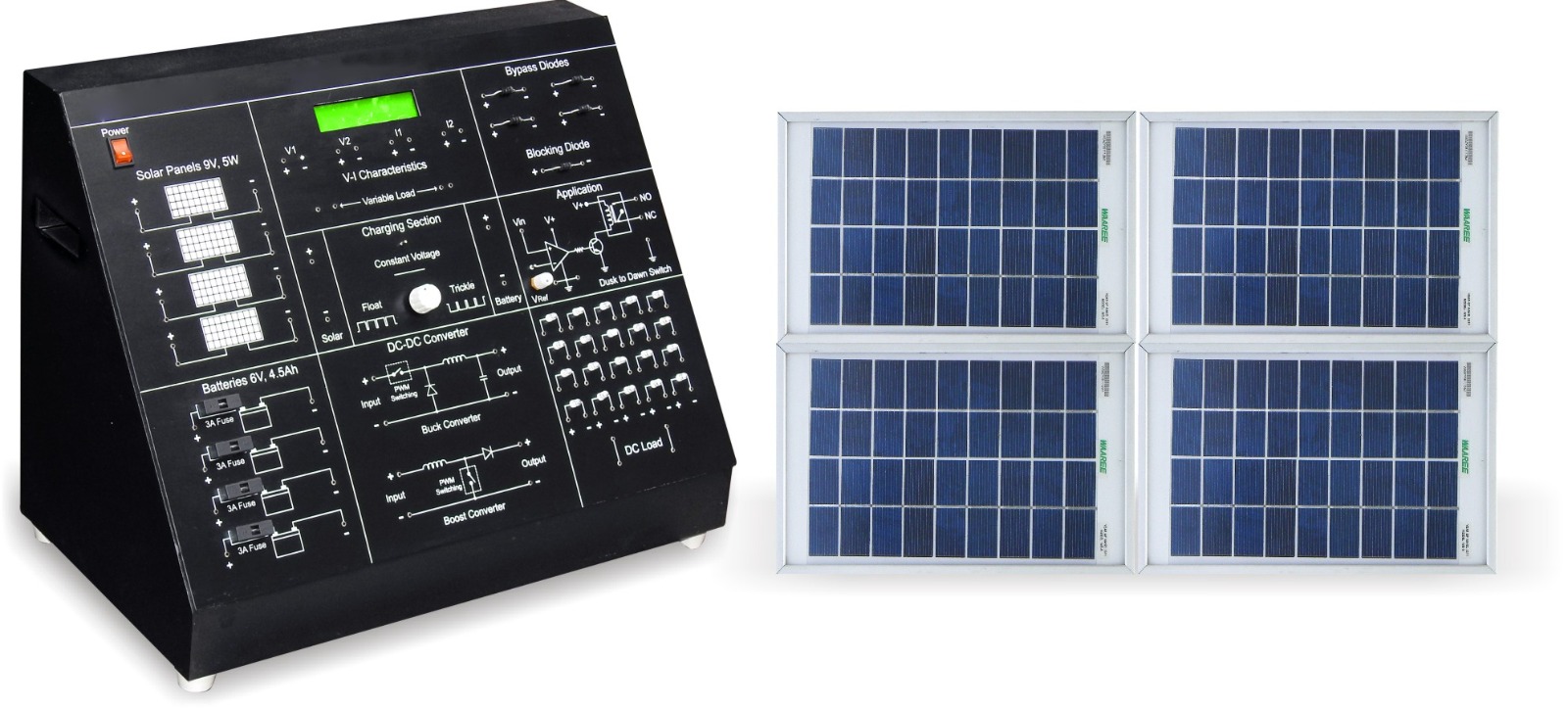

Solar Energy Trainer with Grouping of Solar Cells

Technical Specifications
Solar PV Modules
Modules Wattage : 5W
Quantity : 4 Nos.
Open Circuit Voltage (Voc) : 10V
Short Circuit Current (Isc) : 0.60A
Maximum Power Voltage (Vmp) : 8.80V
Maximum Power Current (Imp) : 0.57A
Converter : Buck & Boost
Sensing : Dusk to Dawn
Voltage : 6V
Capacity : 4 Ah
Quantity : 4 Nos.
LCD
Voltmeter : 0-40V
Ammeter : 0-3A
• Dual channel V, I measurement system with PC interface using USB.
• Microcontroller Used : STM32
• Number of Voltage and Current Measurement Channels: 2 channels
• Voltage Measurement Range : 0–36 V DC
• Current Measurement Range : 0–2.5 A
• Supply Voltage : +5 V DC
• Dashboard graphical user interface is provided to see the VI curve by using Solar PV e- learning module Software.
