With the advancement in the technologies it has been a constant requirement to update the living. The vehicle will be tracked accurately and powerfully yet simply .It is great for both personal as well as business use.
A Smart Transportation Monitoring combines the use of automatic vehicle location in individual vehicles with
software that collects these fleet data for a comprehensive picture of vehicle locations. Modern vehicle tracking
systems commonly use GPS technology for locating the vehicle, but other types of automatic vehicle location
technology can also be used. Vehicle information can be viewed on electronic maps via the Internet. Urban public transit authorities are an increasingly common user of vehicle tracking systems, particularly in large cities. Vehicle tracking has been accomplished by installing a box into the vehicle, either self-powered with a battery or wired into the vehicle’s power system. It consists of GPS, GSM, temperature and humidity sensor and accelerometer.

This system will give the location in the form of latitude and longitude along with temperature, humidity and
readings of accelerometer as SMS in the registered number and in the local cloud at every particular interval of time.

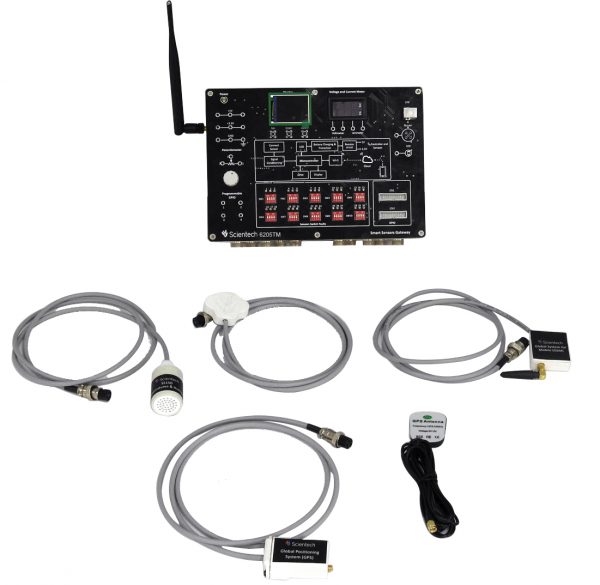

Features

• Platform to learn, explore, and develop IoT skills
• GPS Module along with antenna for tracking the real time location of the vehicle.
• GSM to send text message and use GPRS for cloud usage.
• MPU6050 for the accelerometer readings.
• Battery smart sensor gateway for sensor connectivity.
• For uploading the program, on board USB is provided.
• On board Variable potentiometer
• On board LED
• Buzzer and input/output switch for testing.
• Sensor gateway with color LCD display
• Inbuilt Wi-Fi and zigbee for wireless communication
• On board Fault Switches for Sensors
• On board DC Power Supply plug in modules and Inbuilt Li-Ion battery
• Dedicated 3.3v and 5v output ports
• 3 Tact switches for inputs
• 10 ports of Din Connector for sensors and actuators.
• On board charging and protection circuit for Battery
• Test points for Sensors with inbuilt Voltmeter and Ammeter
• Compact tabletop ergonomic design
• Ready experimental details
• User friendly, self-explanatory system.
