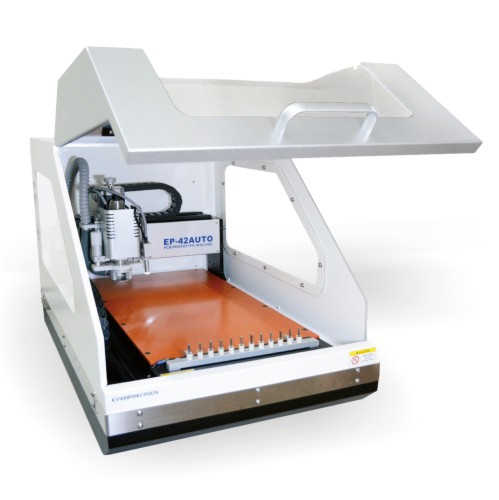

PCB Prototype Machine

PCB Prototype Machine

EP 42A

Download Catalog
Request a quote
Request a demo
Watch Product Video
Share On:

We offer cost-effective, environmentally friendly equipment for each stage of the prototyping process, making this PCB prototype machine ideal for design verification, structuring, and board assembly.The prototype system in this machine enables customers to manufacture fully functional boards with ease in a short period of time through drilling/milling/engraving/routing, 4 mil track and trace machining, etc.

This advanced prototype machine can use the Auto Tool Change system to change up to 12 tools automatically during production, on the machine, which lowers set-up times, and enables unattended production.

It has a 42,000 RPM motor on the spindle which allows shorter machining time and high accuracy. Through software, the spindle speed can be programmed and allows the 4 mil track and trace machining, which is why this prototype solution of a machine can be applied to the precise PCB manufacturing.

PCAM Software: PCAM is compatible with all Windows systems and accepts standard RS274D/X format Gerber files exported from Layout Software like: P-Cad / Allegro / Protel / ALTIUM Designer / Power PCB (PADS) / ORCAD, etc. This makes the PCB prototype machine suitable for various electronic design workflows.

  • We offer cost-effective, environmentally friendly equipment for each stage of the prototyping process, from design verification to structuring and board assembly. It allows customers to produce fully functioning boards quickly and easily by drilling/milling/engraving/routing, mil track and trace.
  • Auto Tool Change is up to 12 tools are automatically changed during production. This reduces set-up times and allows for unattended production.
  • 42,000 rpm spindle motor ensures the shortest machining times and highest accuracy. It can be control spindle speed by software and apply to 4 mil track and trace.
  • PCAM Software: PCAM is compatible with all windows system and accepts standard RS274D/X format Gerber files exported from Layout Software like : P-Cad/ allegro / protel /ALTIUM Designer/ Power PCB(PADS)/ORCAD, etc



Environmental Friendly

Confidentiality

Rapid PCB Making Operation

High Precision

High Rpm

PCAM Software

PCAM is compatible with all Windows systems and accepts standard RS274D/X format Gerber files exported from layout software like:
P-Cad / Allegro / Protel / ALTIUM Designer / Power PCB (PADS) / ORCAD, etc.
This computer integration boosts the functionality of the PCB prototype machine in order to implement PCB design in a short time.

Vision Align System

    • Optical CCD Align system (camera) is significantly faster and more accurate than the front and back system. It is virtually indispensable in structuring multilayer boards and double-sided PCBs. The feature enhances accuracy in the prototype machine in manufacturing PCBs. Has automatic tool length inspection and automatic board surface detecting.

Tools

    1. Engrave Tool: For engraving trace and pad.
    2. End-mill Tool: For copper removing.
    3. Drill Bit: For drilling holes.
    4. Router Bit: For PCB outline cutting.

Thru-hole Application

  • No pollution / environmentally friendly
  • Easy Operation / cost saving
  • Apply to minimal 0.2mm holes
  • Working Area: 220mm X 320mm

Technical Specifications

EP-42 EP-42 Auto
Working Area 320 X 230 X 50 mm 320 X 230 X 50 mm
Resolution 0.5 µm 0.5 µm
Control Motor X.Y.Z / Stepping Motor X.Y.Z / Stepping Motor
MAX. Travel Speed 60 mm/sec 60 mm/sec
MIN. Trace Width 4 mil 4 mil
MAX. Working Speed 30 mm/sec 30 mm/sec
Drilling 0.2-3.175 mm 0.2-3.175 mm
Drilling Performance 120 Stroke/min 120 Stroke/min
Tool Change Semi-Automatic Automatic (12 positions)
Tool Holder 1/8″ Socket 1/8″ Socket
Tool Length Detect Auto Tool Length Detect Auto Tool Length Detect
Surface Detect Auto Tool Length Detect Auto Tool Length Detect
Spindle Speed 5,000-42,000 rpm (Software Control) 5,000-42,000 rpm (Software Control)
Machine Weight 58.5Kg 60Kg
Power Consumption AC 110-220 V AC 110-220 V
Dust Enclosure Available Available

FAQs

What is the PCB Prototype Machine EP 42A?

The PCB Prototype Machine EP 42A is a prototype machine system which is a high preciseness machine prototype system used to print circuit boards fast by drilling, milling, engraving and routing.

What is the purpose of a PCB prototype machine?

The prototype PCB machine is designed to produce prototype printed voltage circuits to validate the design, test, and develop before the mass production.

What operations can the EP 42A PCB prototype machine perform?

The EP 42A prototype machine will be able to drill, mill, engrave, route and trace PCB fabrication with high precision.

What is the spindle speed of the EP 42A PCB prototype machine?

The machine has a spindle motor of 42,000 RPM and spins at a high rate making it more accurate and faster in machining precision in PCBs.

What is the advantage of the Auto Tool Change feature in the prototype machine?

Auto Tool Change system allows 12 tools to be changed automatically during the production process, this saves on the time of setting up the system and allows the system to be left unattended.
