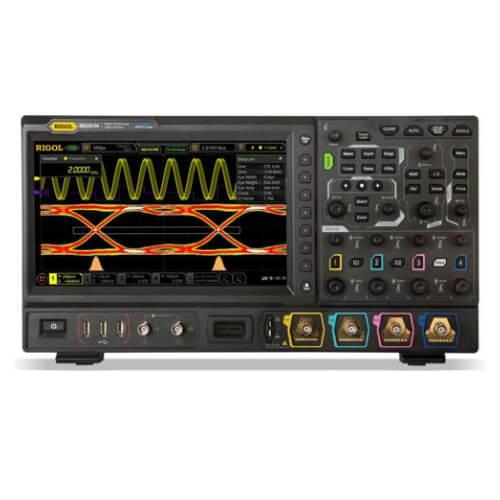

MSO8000 series is a medium and high-end mixed signal digital oscilloscope designed on the basis of the ASIC chip (RIGOL self-owns its intellectual property right) and UltraVision II technical platform developed by RIGOL. Integrating 7 independent instruments into one, the MSO8000 series is equipped with the analog bandwidth of up to 2 GHz, extremely high memory depth of 500 Mpts, sound waveform display effects, excellent waveform capture rate, and powerful data analysis functions. Many of its specifications have reached the top level in the industry. It supports many popular triggering and decodes RS232/UART , I2C,SPI,CAN,LIN ,FlexRay,I2S and MIL-STD-1553 which makes this product useful for users working in to Embedded Systems , Automotive and Audio Industry. More than 600,00 wfms.sec 600,000 wfms/sec waveform capture rate minimize the dead time between trigger evens events. The possibility of missing an event is reduced.

Features

• Analog bandwidth: 600 MHz, 1 GHz, and 2 GHz (single-channel and half-channel modes)
• 4 analog channels, 1 EXT channel, and 16 standard configuration of digital channels (required to purchase the probe)
• Up to 10 GSa/s real-time sample rate
• Up to 500 Mpts memory depth (standard)
• High waveform capture rate (over 600,000 waveforms per second)
• Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
• Integrates 7 independent instruments into 1, including digital oscilloscope, 16-channel logic analyzer, spectrum analyzer, arbitrary waveform generator (option), digital voltmeter, 6-digit frequency counter and totalizer, and protocol analyzer (option)
• Auto measurement of 41 waveform parameters; full-memory hardware measurement function
• A variety of math operations, built-in enhanced FFT analysis, and peak search function
• Waveform histogram analysis (standard)
• Independent search, navigation keys, and event table
• Real-time eye diagram and jitter analysis software (option)
• Built-in advanced power analysis software (option)
• User-defined one-key quick operation
• 10.1-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
• Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
• Web Control remote command
• Unique online version upgrade
• Sophisticated and convenient industrial design, easy to operate
