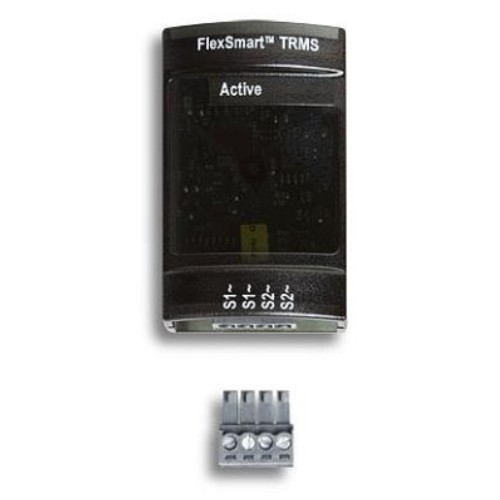

Features

• 2 input channels of AC Current and/or Voltage
• Measures True RMS for accurate readings of sinusoidal and non-sinusoidal waveforms

Specifications

• Input Channels: Two; AC-coupled
• Field Wiring: Two-wire via screw terminals on detachable connector, 16-24 AWG
• Replacement Detachable Connectors: Part of spares kit (A-FS-TRMSA-4P-1)
• Input Range: 5 to 512 mVRMS
• Minimum Input Voltage: 5mVRMS; Input voltages < 5mV will be clipped to zero (see graph below)
• Maximum Input Voltage: ±1V referred to AC- terminals (pins 2 and 4)
• Input Frequency: 50/60 Hz
• Accuracy: ±0.3% of reading +/- 0.5% of FSR
• ADC Resolution: 15 bits
• AC Waveform: <4 Crest Factor
• Power Requirements: +3.3V @ 3mA active, 6A sleep
