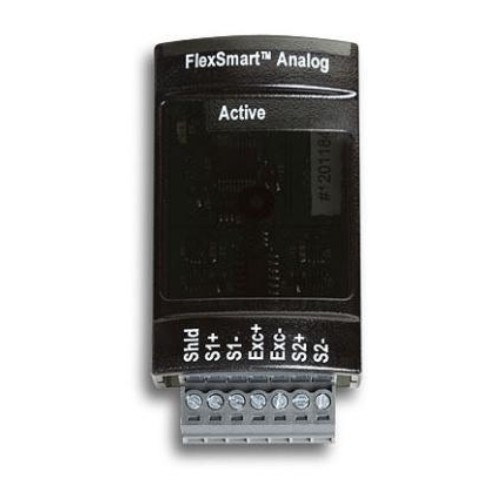

FlexSmart Analog Module (2 channels) Sensor

.

For use with the H22 Energy Logger, this module handles two single-ended input channels with user-configurable ranges of 0 to 20mA DC or 0 to 20 V DC, which is suitable for 2.5-, 5-, and 10-volt sensors. Field wiring is 2- or 3-wire via screw terminals

Features

• Input Channels: 2 single-ended
• User-configurable Ranges: 0-20mA, 0-20VDC (suitable for 2.5, 5, and 10V sensors)
• Accuracy: ±0.25% FS over range selected from 50mV to FS
• A/D Accuracy: ±0.05%
• A/D Drift: 5 ppm/°C
• Resolution: 12-bit
• Excitation Power: 12V DC @ up to 200mA switched, with up to 2-minute warm-up in 5 msec increments
• Field Wiring: 2- or 3-wire via screw terminals
