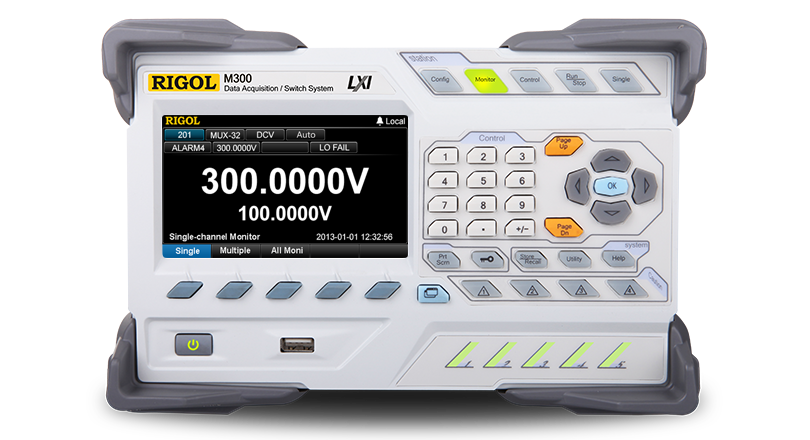

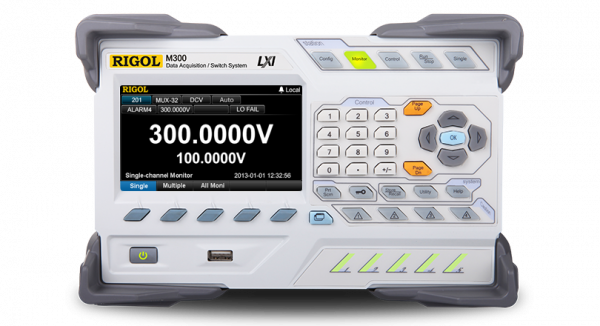

Rigol M300 Series Data Acquisition / Switch System with a modular structure, which combines precision measurement capability with flexible signal connections, can provide versatile solutions for applications with multiple points or signals to be tested in product performance tests during the R&D phase as well as an automatic test during the production process.
The data acquisition system is designed to collect and monitor measurement data from multiple channels, making it suitable for automated testing and R&D applications. The Rigol M300 Series works as a flexible electronic switch system, allowing users to manage multiple signal connections and measurement points efficiently. This data acquisition system provides a practical solution for applications where reliable data acquisition and signal switching are required.
As a versatile data acquisition and switch system, the M300 Series supports applications that require reliable signal routing, measurement, and automated testing. Its modular design also simplifies system maintenance and switch requirements when configuring or expanding switching and measurement setups. For users exploring what data acquisition is and how a data acquisition system can support automated measurement, the Rigol M300 Series provides a flexible solution for managing multiple measurement points and signals.
Features
- Up to 320 switch channels per mainframe,save on cost of ownership
- Rigol M300 Series?Can be run without PC
USB logging
- Interval scanning with storage of up to 100,000 time-stamped readings
8 kinds of cards supported
- 61/2 DMM can be enabled/disabled in any of slots
- Standard SCPI commands
- Math statistics:AVG, MAX, MIN, SDEV
4.3` TFT LCD
Powerful PC software.
- Full Interfaces supported: USB Device,USB Host, GPIB, LAN(LXI-Core Device 2011), RS232
Key Applications
The Rigol M300 Series data acquisition and switch system is designed for applications that require accurate measurement, flexible signal switching, and automated testing across multiple channels. As a data acquisition system, it helps collect measurement data from multiple test points while providing flexible switching capabilities.
Automated Production Testing
The M300 Series helps manufacturers automate repetitive measurement and testing tasks during production using a reliable data acquisition system.
- Automated measurement and data collection
- Multi-channel testing
- Faster production testing
- Consistent test results
R&D Testing
The system is suitable for research and development environments where engineers need flexible measurement and signal switching. The data acquisition and switch system can support different test configurations during product development.
- Prototype testing
- Design verification
- Multiple signal measurements
- Flexible test configurations
Electronic Component Testing
The M300 Series can be used to test electronic components and circuits by combining measurement capabilities with flexible switching. This data acquisition system helps engineers collect and manage measurement data during component testing.
- Component performance testing
- Electrical parameter measurement
- Automated test sequences
- Reliable data logging
Multi-Point Measurement
With support for up to 320 switch channels per mainframe, the system can handle testing applications involving multiple measurement points. This makes the M300 Series a flexible data acquisition system for applications that require efficient measurement and signal switching.
- Multiple test points
- Channel scanning
- Time-stamped readings
- Efficient data acquisition
Signal Switching
The M300 Series functions as an electronic switching system for routing signals between different test points, instruments, and devices. The switch system provides flexible signal routing for automated measurement and testing applications.
- Flexible signal routing
- Multiple switching channels
- Automated channel selection
- Easy system configuration
Product Performance Testing
The system can support product performance testing during both R&D and manufacturing processes. The data acquisition system helps collect measurement data while the switch system manages signals between different test points.
- Functional testing
- Performance verification
- Automated measurements
- Test data recording
Automated Test Systems
The M300 Series can be integrated into automated test systems using interfaces and standard SCPI commands. This data acquisition and switch system is suitable for automated measurement, signal routing, and test data collection. For users looking to understand what is data acquisition, this type of system demonstrates how measurement data can be collected and managed automatically across multiple channels.
- PC-based test automation
- SCPI command support
- USB, LAN, GPIB, and RS232 interfaces
- Automated measurement and reporting
Why Choose Rigol M300 Series Data Acquisition / Switch System?
- Flexible Data Acquisition: Supports accurate and reliable data acquisition across multiple measurement points and signals, making it a versatile data acquisition system for testing applications.
- High Channel Capacity: Supports up to 320 switch channels per mainframe, making it suitable for large-scale testing applications that require efficient data acquisition and signal switching.
- Versatile Switching: Functions as an electronic switching system for efficient signal routing and automated testing, making it a flexible switch system for different test configurations.
- Modular Design: The modular structure makes it easier to configure the data acquisition and switch system according to specific testing requirements.
- Easy System Maintenance: Flexible card configurations help simplify system maintenance and future system expansion while supporting changing data acquisition requirements.
- PC-Free Operation: The M300 Series can operate without a PC and supports USB data logging, providing convenient data acquisition and measurement data storage.
- Advanced Data Storage: Stores up to 100,000 time-stamped readings during interval scanning, supporting efficient data acquisition and measurement monitoring.
- Multiple Interfaces: Supports USB, GPIB, LAN (LXI-Core Device 2011), and RS232 for convenient data acquisition system integration and automated test system connectivity.
FAQs
What Is Data Acquisition?
Data acquisition is the process of collecting, measuring, and recording data from different signals, sensors, or test points. A data acquisition system collects this information and helps users monitor, analyze, and store measurement data for testing, research, and automated applications.
How many switch channels does the Rigol M300 Series support?
The Rigol M300 Series supports up to 320 switch channels per mainframe, making it suitable for applications that require multiple measurement points and flexible signal switching.
Can the Rigol M300 Series operate without a PC?
Yes, the M300 Series can operate without a PC and supports USB data logging, allowing users to collect and store measurement data directly.
What applications can the Rigol M300 Series be used for?
The M300 Series can be used for automated production testing, R&D testing, electronic component testing, multi-point measurement, signal switching, and product performance testing.
How does the Rigol M300 Series support automated testing?
The system supports automated testing through standard SCPI commands and interfaces such as USB, GPIB, LAN, and RS232. It can be integrated with PC-based test systems for automated measurement, signal routing, and data collection.
