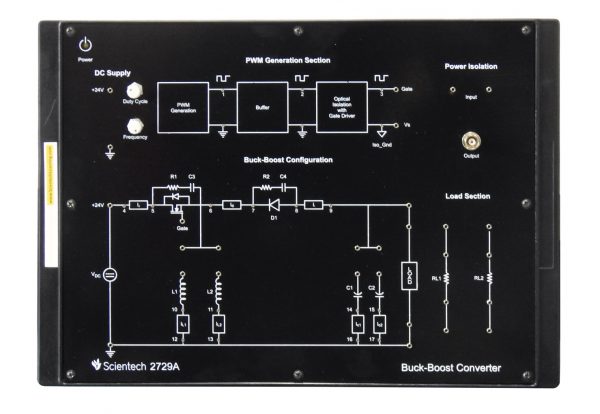

Scientech 2729 is a compact and user friendly learning platform which is very useful for students to understand the concept of PWM generation technique, and Buck-Boost Converter topology on various load configurations. It is also helpful for understanding the converter output on various filter configurations. Platform explains PWM generation technique, Buck-Boost Converter operation, and power isolation circuit to measure the isolated output.

Features

• Easy to operate & understand.
• Optically isolated PWM generation with Gate driver.
• Inbuilt isolation section for measurement of the signal.
• Test Points provided at output of each section to measure the signals.
