BeeWave is platform for teaching and prototyping RF systems with a fast and easy Plug & Play approach that is ideal for education and research. Building complex RF circuits on PCB is a tedious task; The user has to carefully route RF tracks, prepare RF layouts and simulations, carefully calculate bias and DC power requirements for different components, design power and control/clock distribution networks… etc. Then wait for PCB fabrication and testing times only to repeat the entire process again with every design iteration. This has made RF design a slow and costly process especially for universities and research centers, startups and small to medium businesses who don’t have access to their own RF PCB manufacturing and testing facilities.

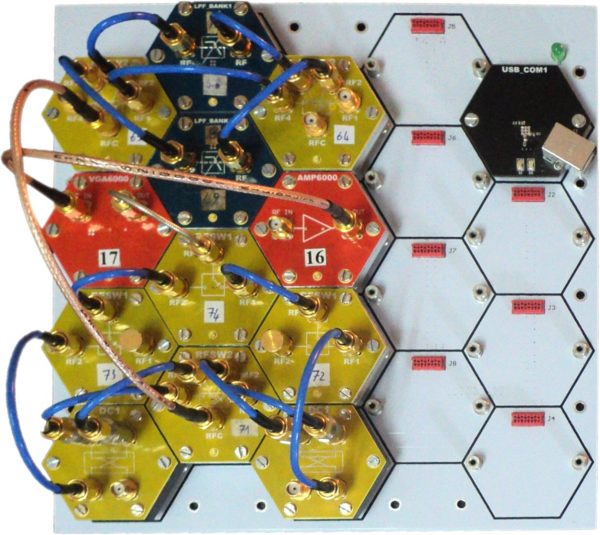

BeeWave opens the door to innovation in the RF Field by allowing students, researchers and designers to build complete RF systems simply by connecting readymade modules using standard cables, accelerating the early stages of RF Circuit design and prototyping and minimizing error and uncertainty. BeeWave Modules represent common RF circuit components (Filters, Mixers…etc.) with both active and passive modules to support designing virtually every type of system.

For teachers and educators, BeeWave comes with teaching modules, experiments and lab exercises built around BeeWave to take the student through the different aspects of RF circuit design engineering and RF concepts

Features & Benefits

• Readymade Plug & Play modules for typical RF functions up to 6 GHz
• Connect modules & build complete RF circuits in a matter of minutes
• Ideal for Hands-on education of RF & Microwave concepts
• The fastest way to prototype, test & validate RF circuit designs
• Build any RF & Microwave circuit without the need for complex RF PCB design and fabrication
• Improve your design over multiple design iterations without the cost or delay of PCB re-fabrication
• Readymade configurations for education and classroom training PC controlled modules, compatible with Matlab
