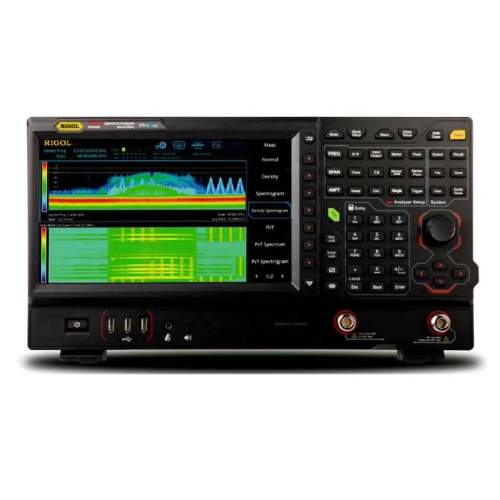

Engineers integrating WiFi, Bluetooth and other modern RF technologies are confronted with complex challenges like frequency hopping signals, channel conflict, and spectrum interference.  Real-Time Spectrum Analyzers bring the dimension of time to RF Analysis making it easier to monitor and characterize these complex RF systems.  The RSA5032 combines industry leading realtime performance (7.45µs 100% POI), rich data displays, and advanced triggering options allowing the user to quickly capture, identify and analyze these complex events.

Features

• Ultra-Real technology
• Frequency: up to 3.2 GHz
• Displayed average noise level (DANL): <-165 dBm (typical)
• Phase noise: <-108 dBc/Hz (typical)
• Level measurement uncertainty: <0.8 dB
• 3.2 GHz tracking generator
• Min. RBW 1 Hz
• EMC flter and quasi-peak detector
• Various measurement functions
• Multiple measurement modes
• Up to 40 MHz real-time analysis bandwidth
• Multiple trigger modes and trigger masks
• Density, Spectrogram, and other display modes
• PC software options
• 10.1” capacitive multi-touch screen, supporting touch gestures
• USB, LAN, HDMI and other communication and display interfaces
