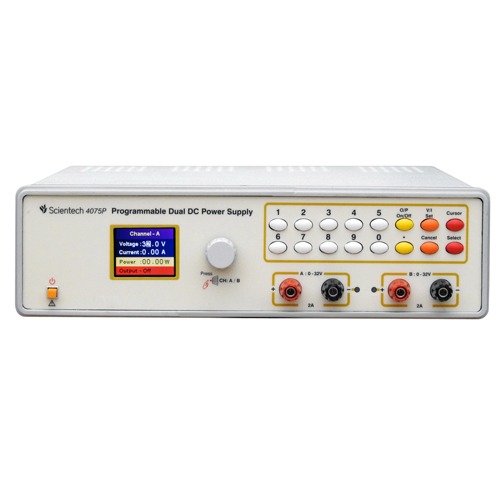

Scientech 4078P Programmable DC Power Supply is a versatile instrument with facility to interface with PC. The front panel with keypad and cursor, makes it user friendly.
It can be set to use as a Constant Voltage and Constant Current source. With low ripple and excellent Line and Load regulation, Scientech 4078P is fully protected against over load, over voltage, over current, over heat and short circuit.
| Parameter | Specification |
|---|---|
| DC Output | 0 – 32 V, 3 A |
| Current Limit | 100 mA – 3 A |
| Setting Resolution | Voltage: 100 mV Current: 10 mA |
| Internal Resistance | ≤ 10 mΩ |
| Stability | 2.5 mV at 30 V / 3 A |
| Recovery Time | ≤ 50 μs |
| Load Regulation | ± (0.05 % +10 mV) for 0 – 30 V |
| Line Regulation | ± (0.05 % +10 mV) for 0 – 30 V |
| Temperature Coefficient | ± (0.05 % + 5 mV / °C) |
| Ripple & Noise | ≤ 1 mVrms |
| Display | LCD Screen with backlit for voltage, current and Power |
| Accuracy | ±(1% +1 digit) |
| Over Range Indication | Glowing ‘Over Current’ LED indicate Overload |
| Interface | USB |
| Protective modes | Over load, over voltage, over current, over heat and short circuit Protection. |
| Parameter | Specification |
|---|---|
| Insulation | Between chassis & output terminals > 10 MΩ at 100 V DC Between chassis & AC plug > 50 MΩ at 500 V DC |
| Power Supply | 230 V ±10%, 50 / 60 Hz |
| Operating Temperature | 0 – 40°C, 80% RH |
| Dimensions (mm) | W 198 × D 278 × H 90 |
| Weight | 4 Kg approximately |
| Product Tutorial | Online on www.ScientechLearning.com |
| Included Accessories | Mains cord, USB cable |
