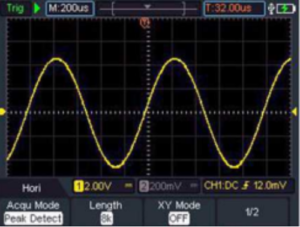

Oscilloscope
Max 10,000 wfms/s waveform refresh rate
- Dual channel input, bandwidth 40 MHz, real-time sampling rate 250 MSa/s
- Max 8k record length
- Cursor measurement function Multiple auto measurement functions
- XY function
- One-key auto set function, easy to detect and debug

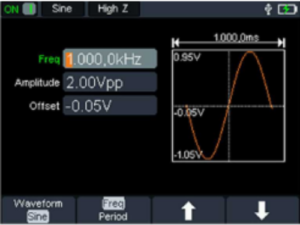

Waveform Generator
25MHz frequency output
Output sine, square, ramp, pulse, and built-in special
waveforms
0.1Hz frequency resolution
14 bit vertical resolution
125MSa/s high sampling rate
8k waveform length
Max 5Vpp output amplitude

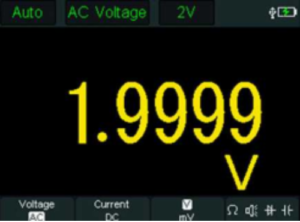

Multimeter
20,000 counts, true RMS
Voltage, current, resistance, diode, capacitance
measuring, and continuity test
Auto range function, easy to detect and debug
Max AC 750V, DC 1000V input voltage
Independent input of multimeter and oscilloscope
Reading hold function
Relative measurement function
