Level Measuring Workbench Setup

Level Measuring WorkBench

Scientech 2473

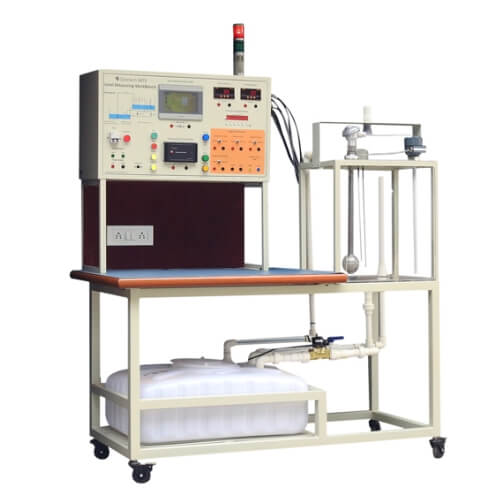

Scientech 2473 Level Measuring WorkStation consists of an instrument panel and transparent tank with different type of level sensor that is useful for the study of principal and working of level measuring setup. This system comprises of the latest components, which reflect the latest technological innovations in this field. level Measuring WorkStation endows students and industry professionals to understand the concepts and working of level Measuring instruments and control, and enables them to learn advance and more complex level process systems.

Scientech 2473 consists of different types of level Sensors such as Ultrasonic, Capacitance type, Point to Point, Pressure type, Magnetic Float type and DAQ, Solenoid Valve, Sump tank and Acrylic Measuring tank. The set-up has safety measures such as emergency shutdown and overheating protection. A wide range of experiments can be performed on the platform.

Features

Included of Different type of Level Sensors like:

Ultrasonic, Capacitive type, Point to Point, Pressure type, Magnetic Float type

7? Human Machine Interface (HMI)

Types of Controller : DAQ ,HMI, and PC

Start, Stop, Pump, Solenoid Valve buttons and Indicator for Visual Indicator, Audio Indicator, Pump & Solenoid Valve

Industry-standard instruments and controls

Interface with Ethernet based DAQ

Sump Tank & Acrylic Measuring Tank

8 Channel 24 bit ADC

Real time DAQ Interface with ADC and Digital input/output

Academic and vocational study for process control engineers and plant technicians

Experiments configurable through Patch board

Self-contained, bench-mounting arrangement

Supplied with Dashboard Software? for supervisory control of the process with data acquisition

Castor Wheel (with locking mechanism) is provided at legs of workstation so that it can be easily moved

MCB is provided with AC supply for safety purpose

Enhanced electrical safety consideration

Online product tutorial
