Overview

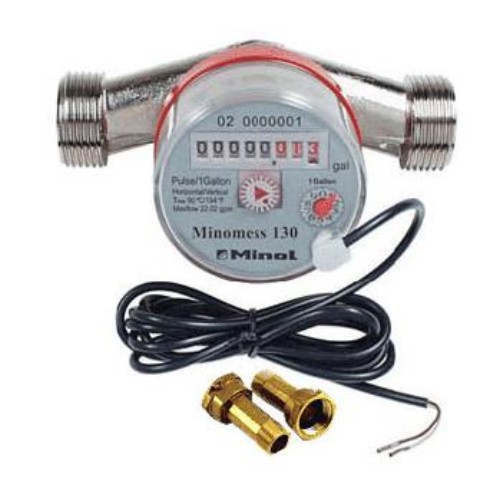

Measure cold and hot water flow rates with this compact, affordable water meter. The compact T-MINOL-130-NL is designed for deployment in apartments, assisted living communities, and other commercial buildings. Please note, this sensors is configured for use with 3/4″ pipes. (Use step-ups or step-downs to deploy the T-MINOL with 1/2″ or 1″ pipe diameters.)
Features
Measures cold and hot water flow rates
Suitable for use in apartments, assisted-living communities, and other types of commercial buildings
Configured for use with 3/4″ pipes; use step-downs for smaller pipe
Specifications
Measurement range: .25 to 22.0
Accuracy: AWWA spec 97 – 103%
Connection size: ANSI/ASME B1.20.1-1983; 1-11.5 SNPSM thread; 5/8 x 3/4 in ID
Dimensions: length 5.12 in, width 2.5 in, height 3.15 in
Cable length: 59 in.
Water temperature range: 40F to 194F
Meter max reading: 99,999,999 US gal
Resolution: 1 contact closure per gal
Body: nickel-plated brass
Weight: 1.32 lbs
Pressure drop: < 8.70 psi typical @ 22 gpm; < 3.6 psi @ 11 gpm
Reed switch: dry contact
UL Listed
ABSI/NSF61 Certified
