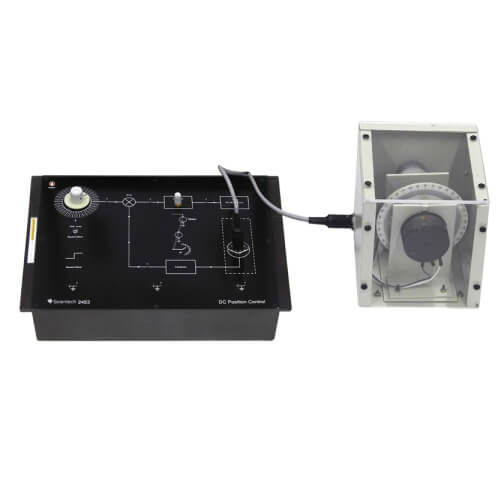

Scientech 2453 is a DC Position Control System which helps the users to gain invaluable practical experience on the principles and applications of continuous closed loop PID controller, its feedback systems, DC motor position control with the help of a reference signal as input and PID Controller and their response with the help of square wave.

Scientech 2453, DC Position Control is an ideal teaching aid to enhance education, training, skills & development amongs our young minds.

Features

• Position control of DC motor.
• Calibrated dials for reference and output position.
• Servo Potentiometers with full 360^o
• Separate unit for motor with two side acrylic body.
• Square Wave Generator.
• Precise Signal Conditioning.
• Sensitive, Linear, Stable and Accurate.
• Easy to operate.

Scope of Learning

• To observe the position control system for different values of angular position commands
• To observe the position control system for different values of the forward gain at different values of angular position commands
• To observe the controller output of the system for different values of the forward gain
